Fig. 3: Comparison of the enrichment results of the perturbation-attributed pathway set in dysregulated pathways inferred with different tools.

From: From expression footprints to causal pathways: contextualizing large signaling networks with CARNIVAL

Fig. 3

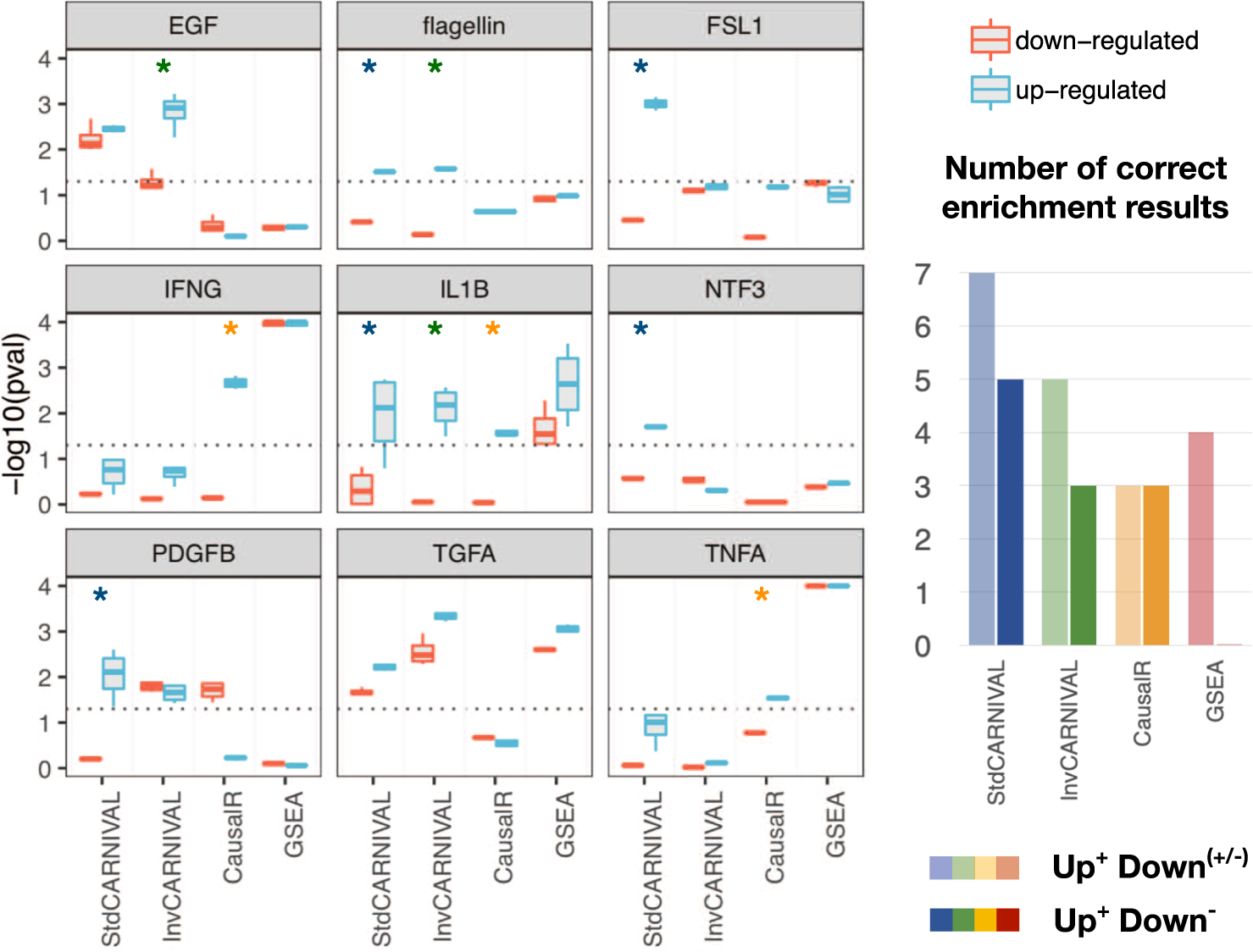

An enrichment of the perturbation-attributed pathway set among the significant pathways was determined. The significance level of 0.05 is indicated by the dotted lines. Asterisks (*) indicate the clear directionality of results where the enrichment results are significant in the up-regulated set and insignificant in the down-regulated set
