Fig. 1: Non-native alkene biosynthesis pathways reconstructed in the iJN678_AK Synechocystis sp. PCC 6803 genome-scale model for cofactor balance analysis. | npj Systems Biology and Applications

Fig. 1: Non-native alkene biosynthesis pathways reconstructed in the iJN678_AK Synechocystis sp. PCC 6803 genome-scale model for cofactor balance analysis.

From: Optimal energy and redox metabolism in the cyanobacterium Synechocystis sp. PCC 6803

Fig. 1

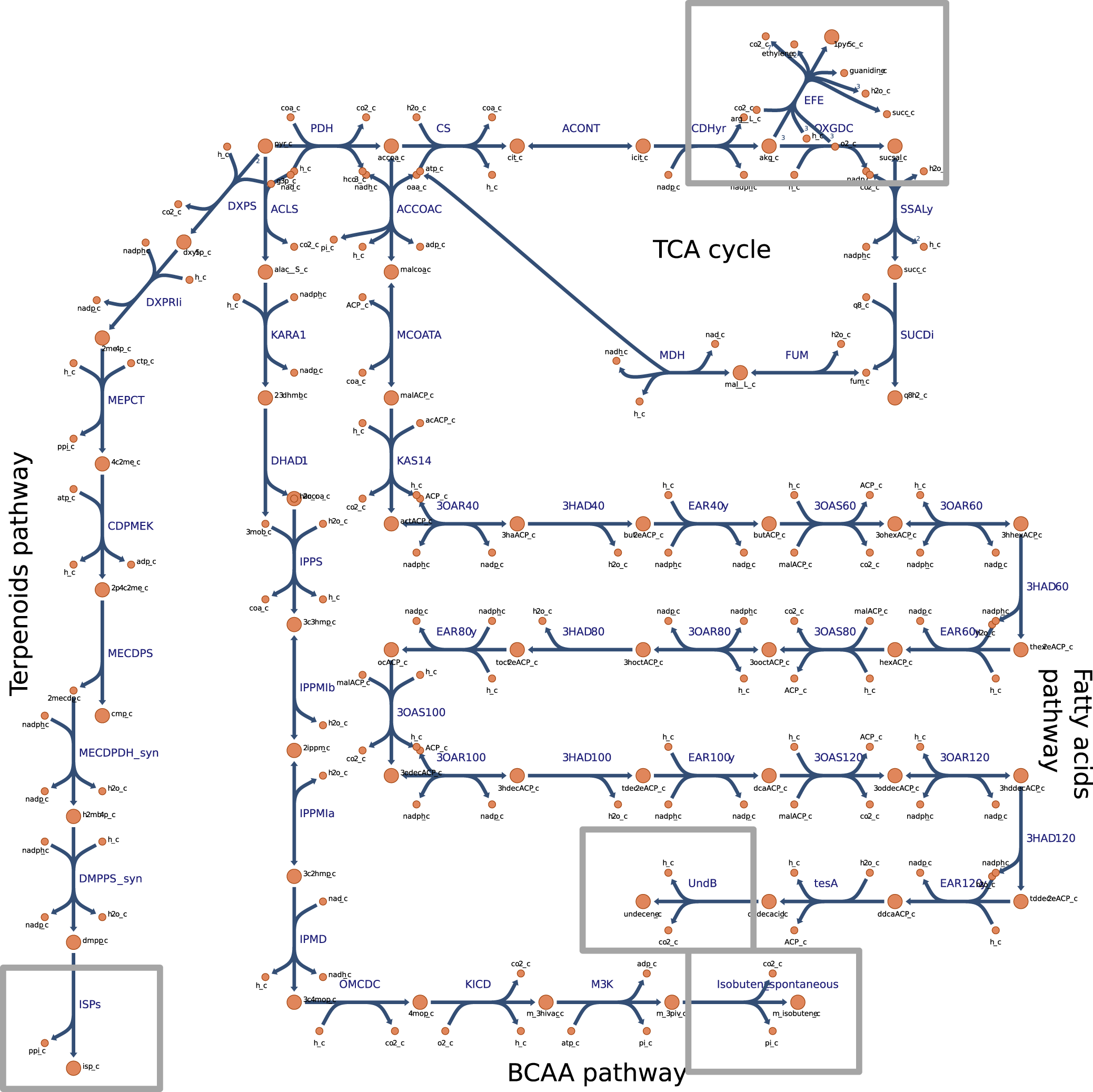

TCA tricarboxylic acid, BCAA branched-chain amino acids. Irreversible reactions are indicated by one-headed arrows; reversible reactions are indicated by two-headed arrows. Metabolic reactions and metabolites (except heterologous ones) are indicated by their BiGG identifier73.
