Fig. 4: Visualization for wave front speeds at different densities for different scenarios.

From: Mathematical modeling of multicellular tumor spheroids quantifies inter-patient and intra-tumor heterogeneity

Fig. 4

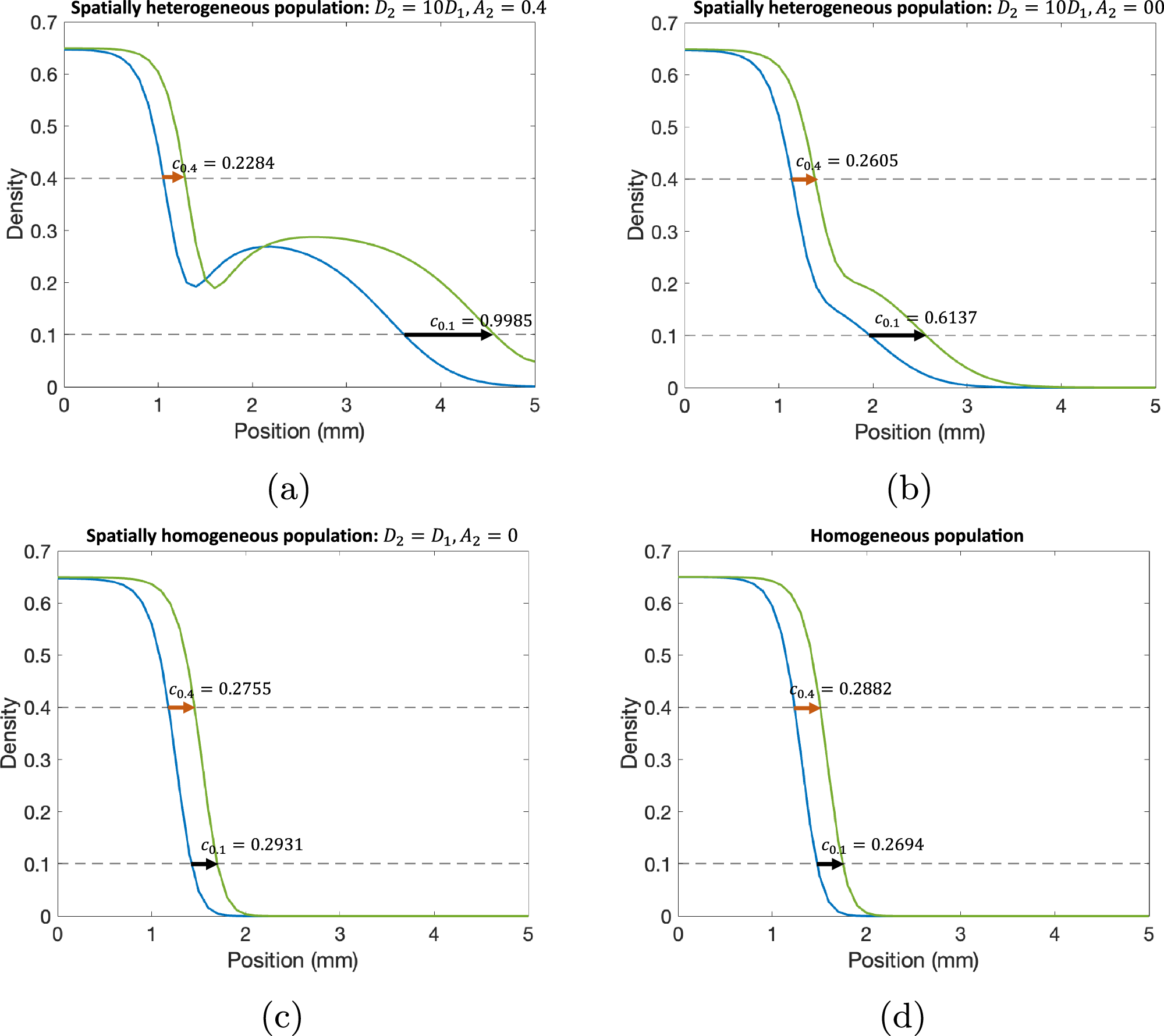

a A spatially heterogeneous population with D2 = 10D1 and A2 = 0.4, b a spatially heterogeneous population with D2 = 10D1 and A2 = 0, c a spatially homogeneous population with D2 = D1 and A2 = 0, and d a homogeneous population. In these figures, we compare the wave front speeds at two different time points: (blue) t = 4.03 wk and (green) t = 5.00 wk. All parameter values for each simulation are presented in Table 2.
