Fig. 7: The overall inverse Jacobian results integrating all 200 local calculation repeats. | npj Systems Biology and Applications

Fig. 7: The overall inverse Jacobian results integrating all 200 local calculation repeats.

From: Machine learning and data-driven inverse modeling of metabolomics unveil key processes of active aging

Fig. 7

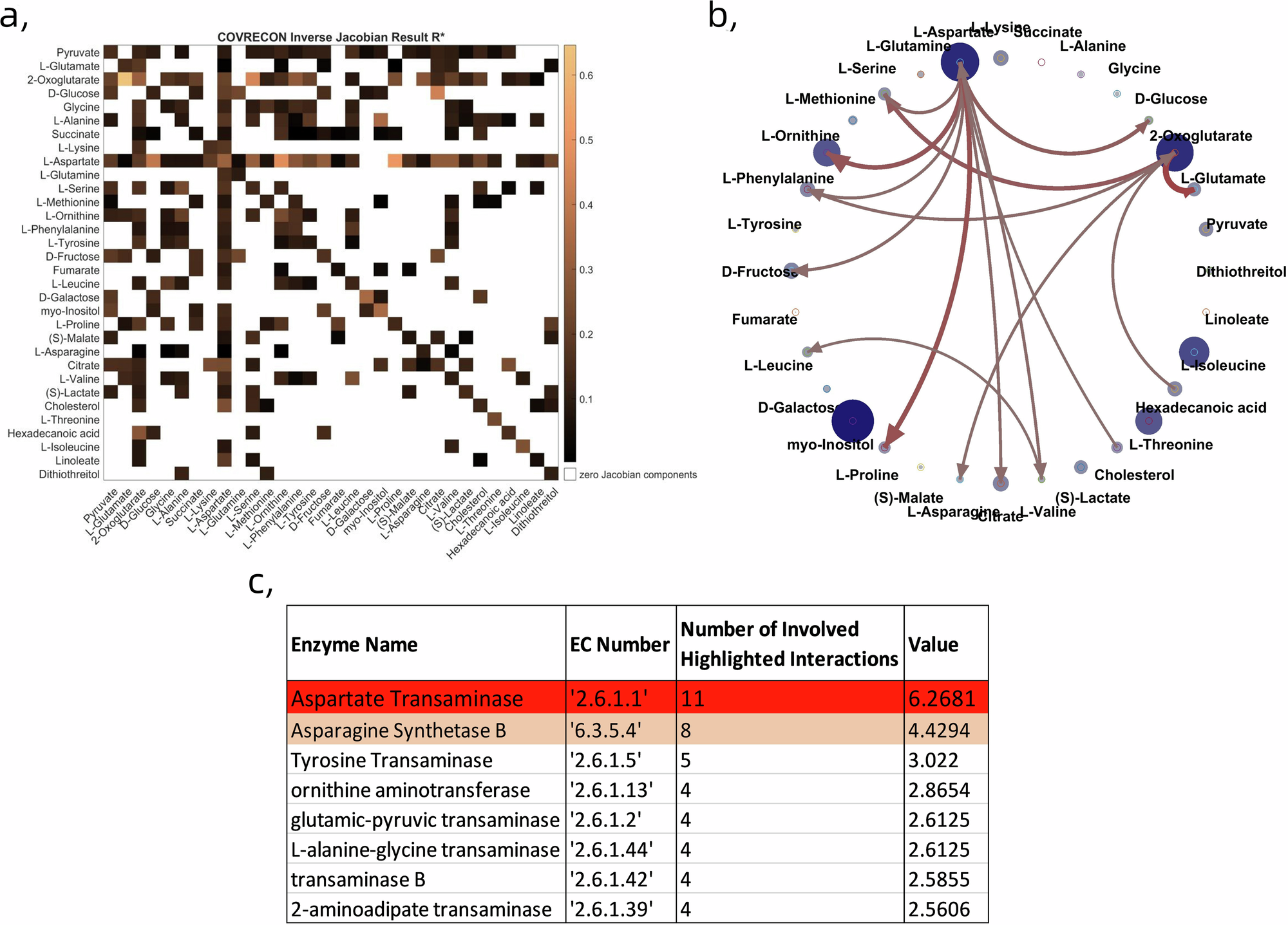

Panel a is the average inverse Jacobian matrix; b only plotted highlighted metabolic interactions with inverse Jacobian calculation value above 0.5 (scaled to 0–1); c listed the most relevant enzymes, where Aspartate Transaminase showed 11 times out of the 15 highlighted interactions, with the accumulated value 6.2681.
