Fig. 6: Functional allocation of GA-selected genes within PA14 iModulons.

From: Minimal gene signatures enable high-accuracy prediction of antibiotic resistance in Pseudomonas aeruginosa

Fig. 6

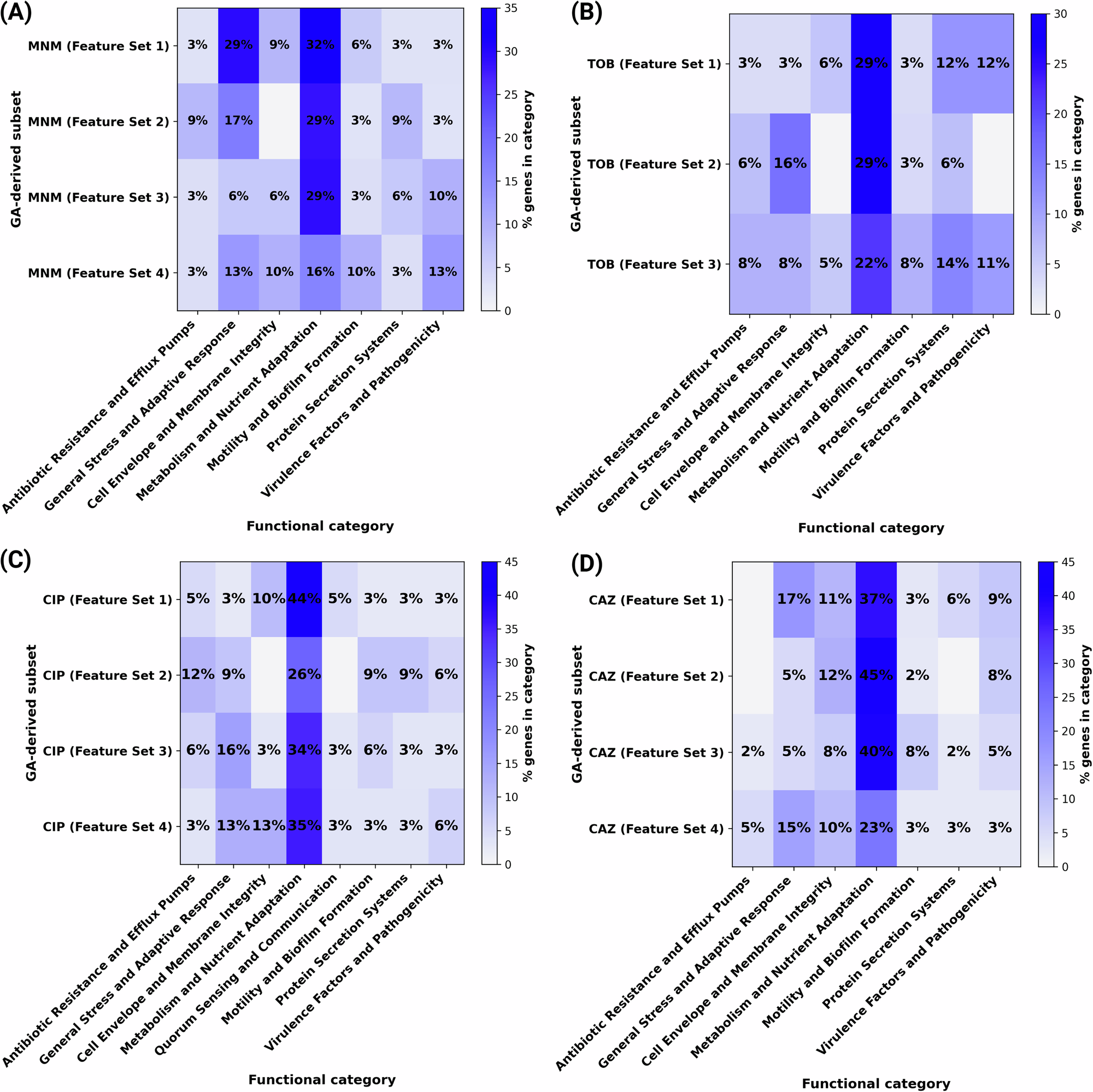

Heatmaps display the percentage of genes in each high-accuracy feature set (rows) that fall into specific PA14 iModulon functional classes (columns). for MNM (A) TOB (B) CIP (C) and CAZ (D). The color scale indicates the percentage of genes assigned to individual functional categories, showing that seemingly distinct gene sets converge on shared regulatory modules such as efflux, general stress, and metabolic adaptation.
