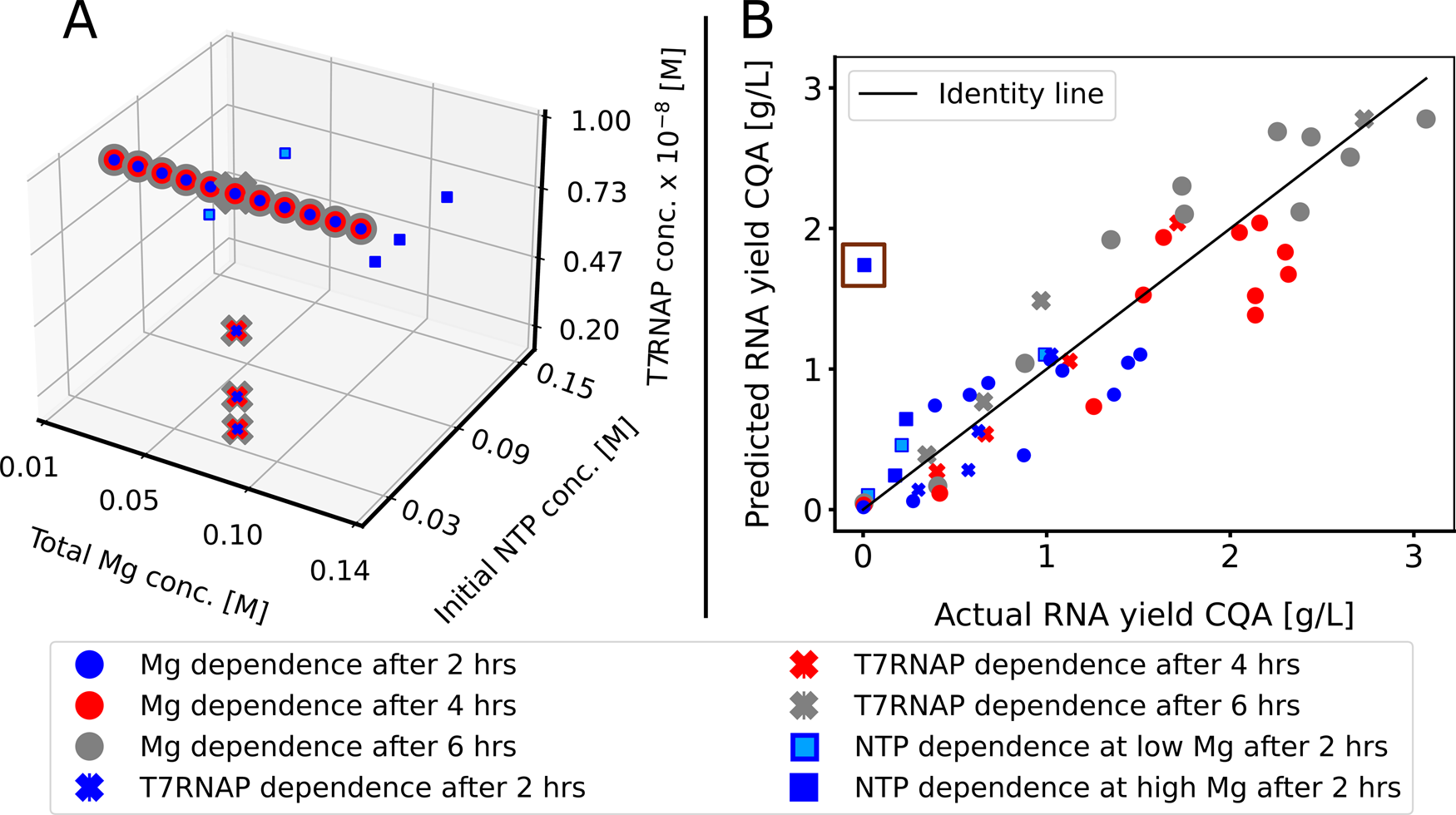

Fig. 2: Experimental data distribution and modelling error plots.
A Three-dimensional plot showing the experimental data generated using a statistical Design of Experiments approach. Data points of different colour overlap. This data was used for model calibration and validation. B Modelling error plot. The x-axis represents the true experimental RNA yield, and the y-axis marks the corresponding prediction from the model. Each point (circle, square or x) is a prediction generated using the model. The black line represents the identity line, where modelling results perfectly match the experimental outcome. The brown square encases the outlier for NTP dependence at high Mg concentration. The meaning of the colours is indicated in the legend below the plots.
