Fig. 8: Comparison of average frequency of polymorphisms measured in EES stools and corresponding cell culture isolate for polymorphisms of interest. | npj Vaccines

Fig. 8: Comparison of average frequency of polymorphisms measured in EES stools and corresponding cell culture isolate for polymorphisms of interest.

From: Assessment of genetic changes and neurovirulence of shed Sabin and novel type 2 oral polio vaccine viruses

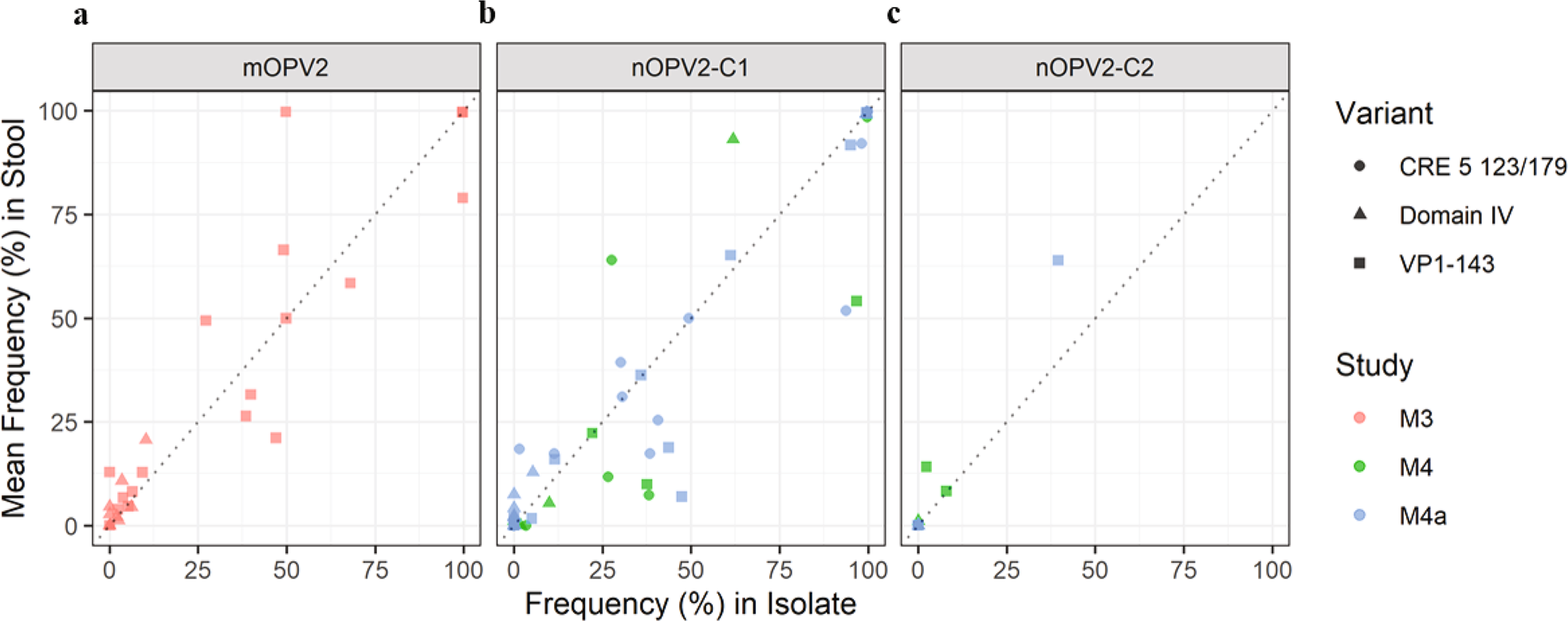

Fig. 8: Comparison of average frequency of polymorphisms measured in EES stools and corresponding cell culture isolate for polymorphisms of interest.

a. mOPV2, b. nOPV2-c1 and c. nOPV2-c2 . Domain IV represents nucleotide position 398 for mOPV2/nOPV2-c2 and 459 for nOPV2-c1. VP1-143 and cre5 123/179 polymorphisms presented in aggregate for each virus. The dotted diagonal line represents the identity (1:1) line. If variant is only present in 1 stool that value is presented. If variant is not present in either, assigned 0 for plotting purposes. All variants reported have Q scores ≥ 30.
