Fig. 2: Distribution of RTS,S-induced sera antibody concentrations (2A10 equivalence, μg/mL) by total doses administered and dose levels. | npj Vaccines

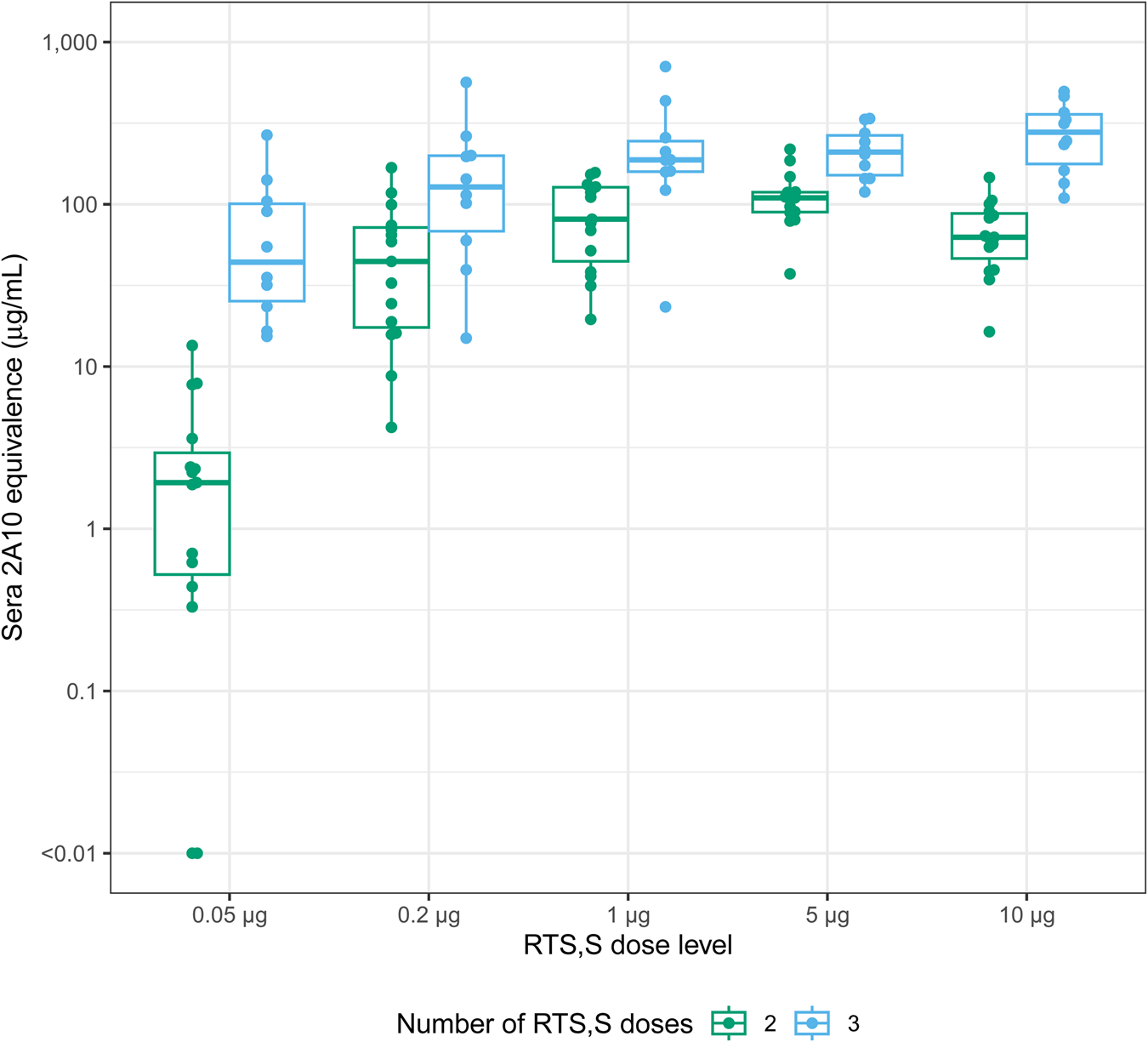

Fig. 2: Distribution of RTS,S-induced sera antibody concentrations (2A10 equivalence, μg/mL) by total doses administered and dose levels.

From: Establishing RTS,S/AS01 as a benchmark for comparison to next-generation malaria vaccines in a mouse model

Fig. 2

Points indicate measurements from individual animals. The mid-line of the boxes denotes the median and the ends of the box denote the 25th and 75th percentiles. The whiskers denote the most extreme data points that were no more than 1.5 times the interquartile range (i.e., height of the box).
