Fig. 5: Gene Set Enrichment Analysis (GSEA).

From: Calcifediol boosts efficacy of ChAdOx1 nCoV-19 vaccine by upregulating genes promoting memory T cell responses

Fig. 5

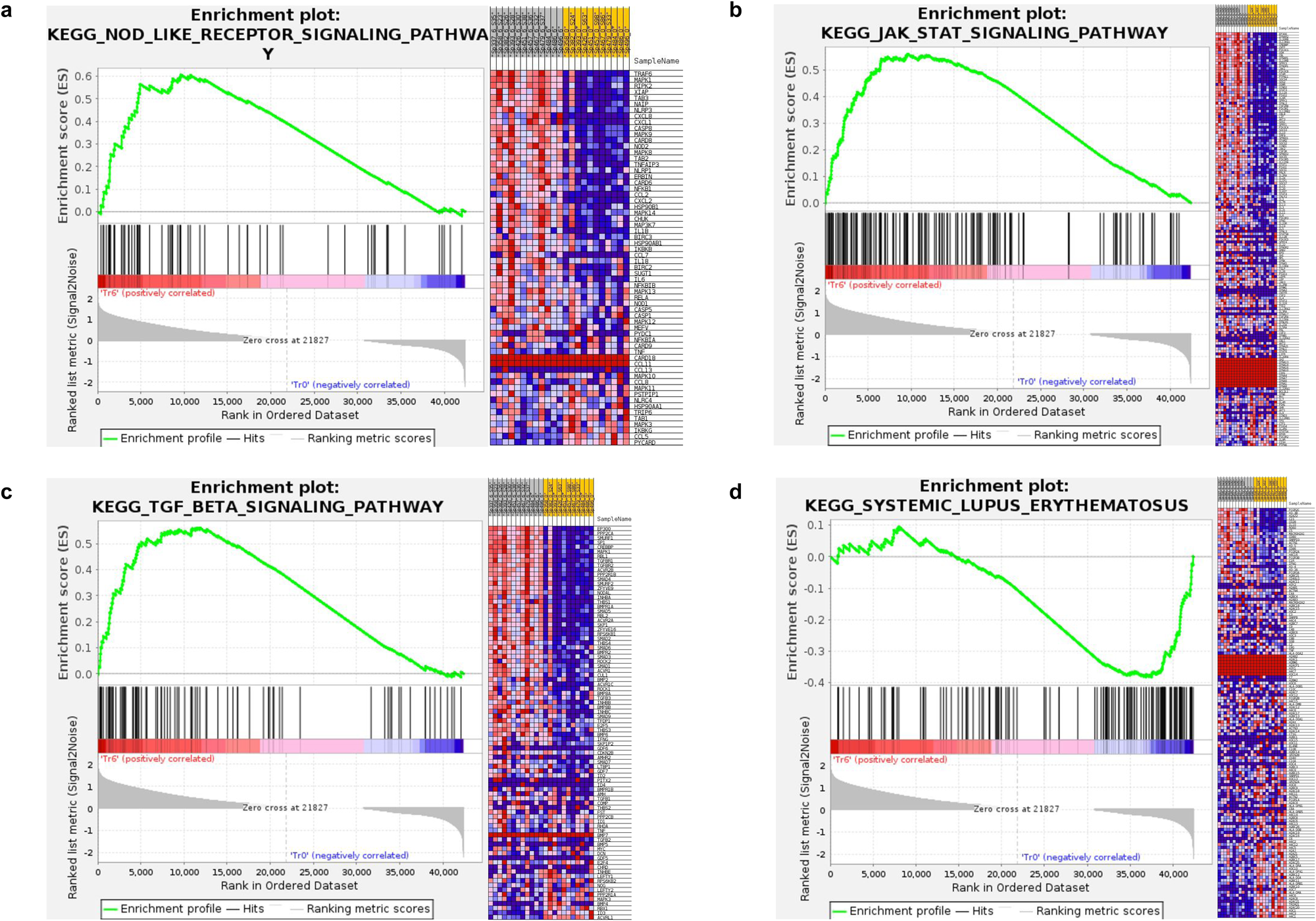

GSEA analysis of the KEGG pathway enrichment for the samples of Treated 6th month vs baseline revealed the genes involved in (a) NOD like receptor, (b) JAK/STAT and (c) TGF BETA signaling pathways that were upregulated and genes involved in (d) Systemic Lupus Erythematosus (SLE) that were downregulated in the same comparison. The ranked gene list is shown in the middle, red indicates upregulation, blue indicates downregulation and the black vertical line indicates the gene set.
