Fig. 6: Protein-Protein Interaction (PPI) Networks.

From: Calcifediol boosts efficacy of ChAdOx1 nCoV-19 vaccine by upregulating genes promoting memory T cell responses

Fig. 6

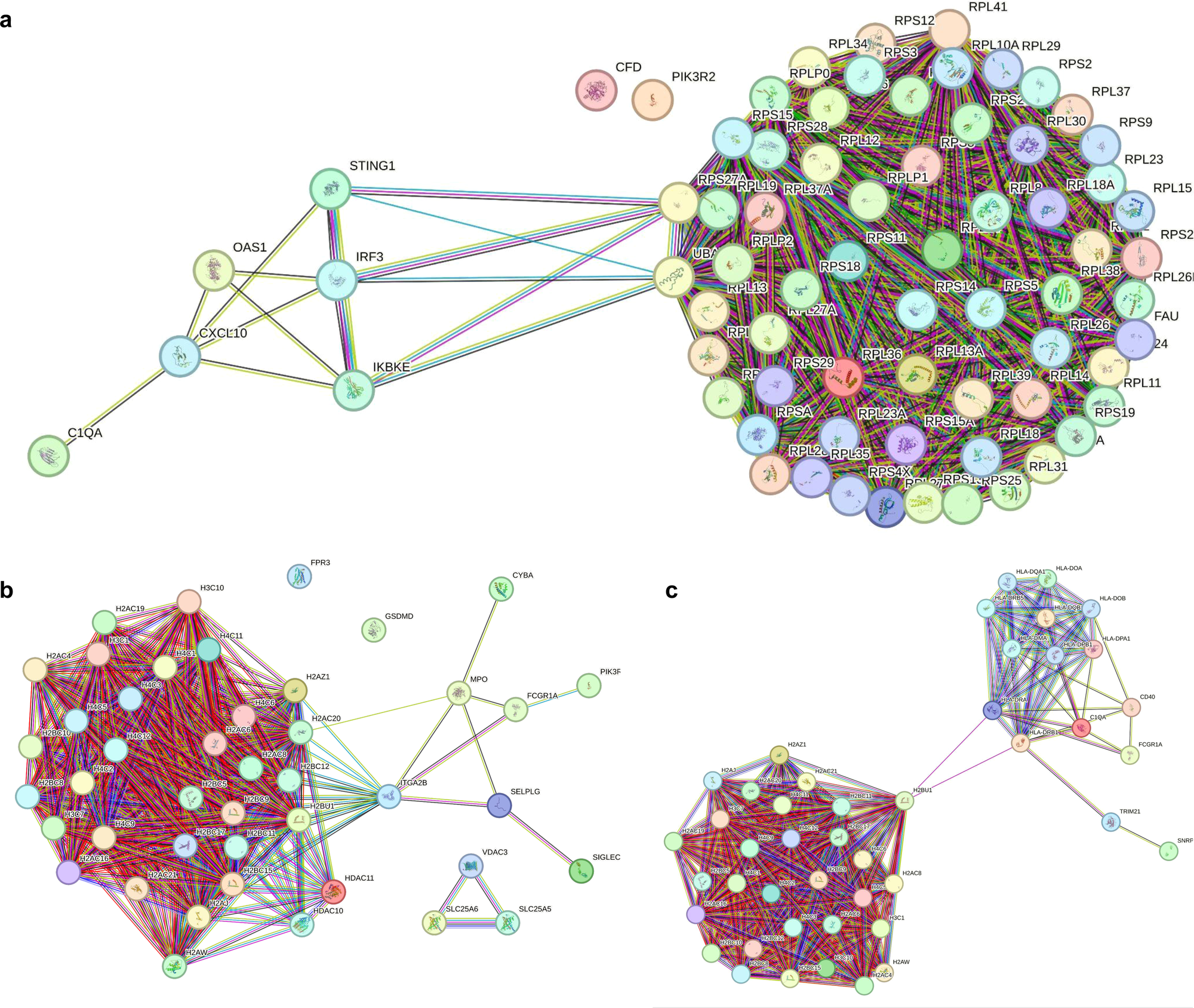

STRING analysis showing Protein-Protein Network of genes related to (a) Coronavirus Disease, (b) Neutrophil extracellular traps (NETs), and (c) Systemic lupus erythematosus (SLE) that are downregulated and showing significant Protein-protein interaction (PPI) enrichment (P < 1.0e-16). Network nodes represent proteins and each node represents all the proteins produced by a single, protein-coding gene locus. Edges represent protein-protein associations. These associations are meant to be specific and meaningful, i.e., proteins jointly contribute to a shared function; with or without physical binding with each other.
