Fig. 1: Schematic diagram representing the workflow of the bioinformatic analyses for predicting immunogenic targets in B. cenocepacia using the reverse vaccinology approach. | npj Vaccines

Fig. 1: Schematic diagram representing the workflow of the bioinformatic analyses for predicting immunogenic targets in B. cenocepacia using the reverse vaccinology approach.

From: Cyclic di AMP phosphodiesterase nanovaccine elicits protective immunity against Burkholderia cenocepacia infection in mice

Fig. 1

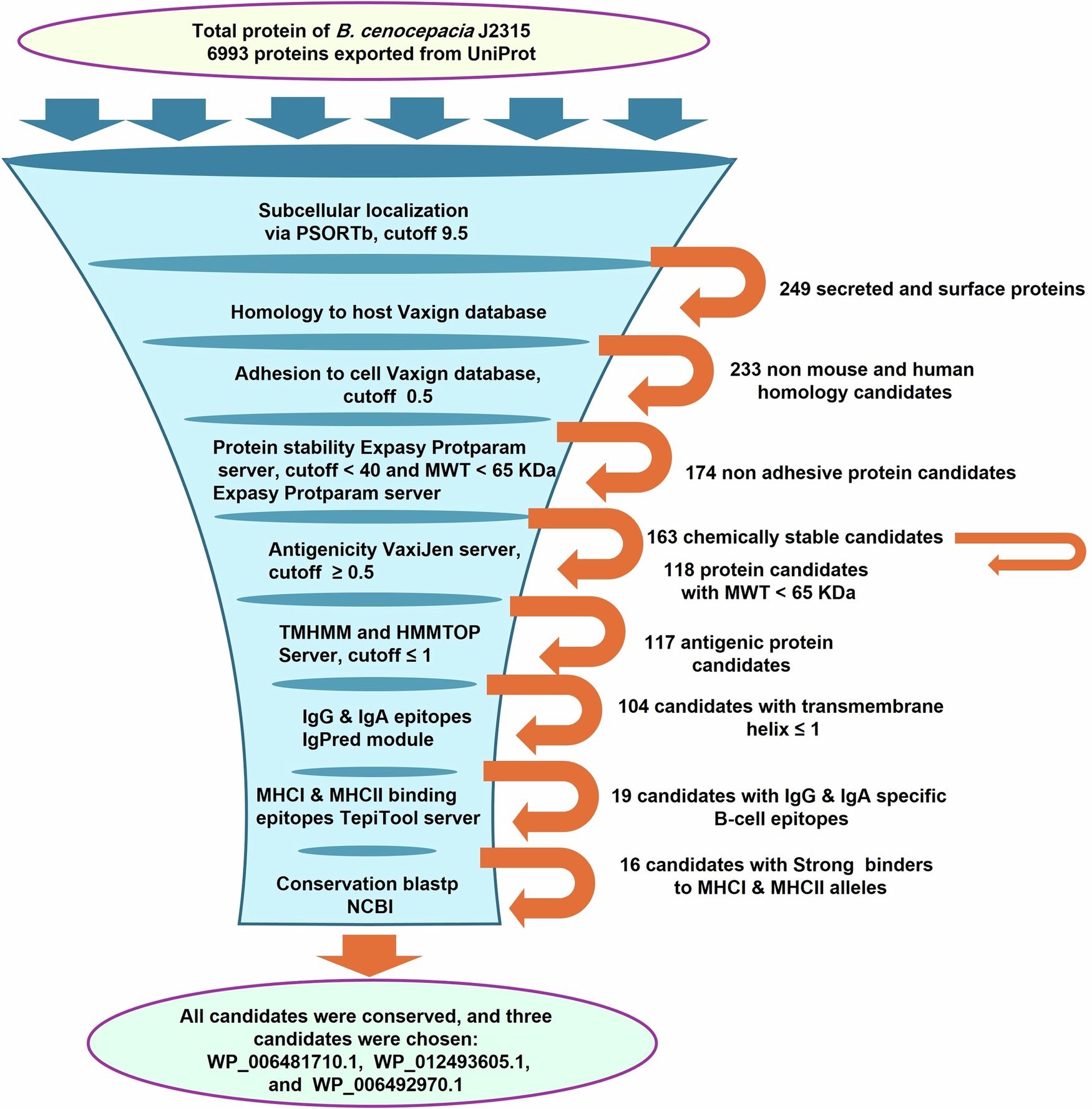

Bioinformatics and immunoinformatic tools were used to analyze the B. cenocepacia proteome to identify potential vaccine candidates, where the proteins progressing to the next stage of analysis are written next to the orange arrow.
