Fig. 3
From: Membrane-based technologies for post-treatment of anaerobic effluents

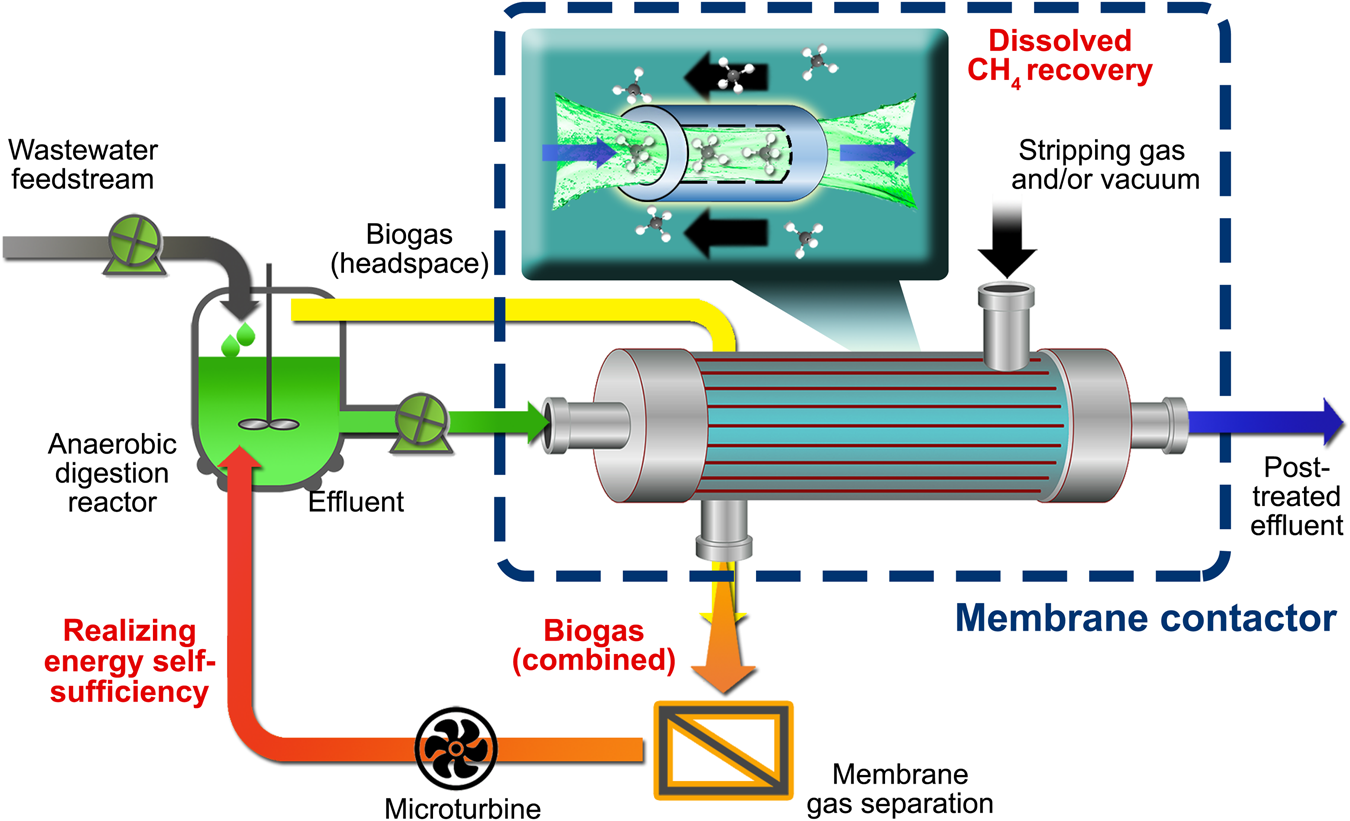

Illustration showing retrofitting of the membrane contactor unit within the anaerobic digestion and membrane separation processes
