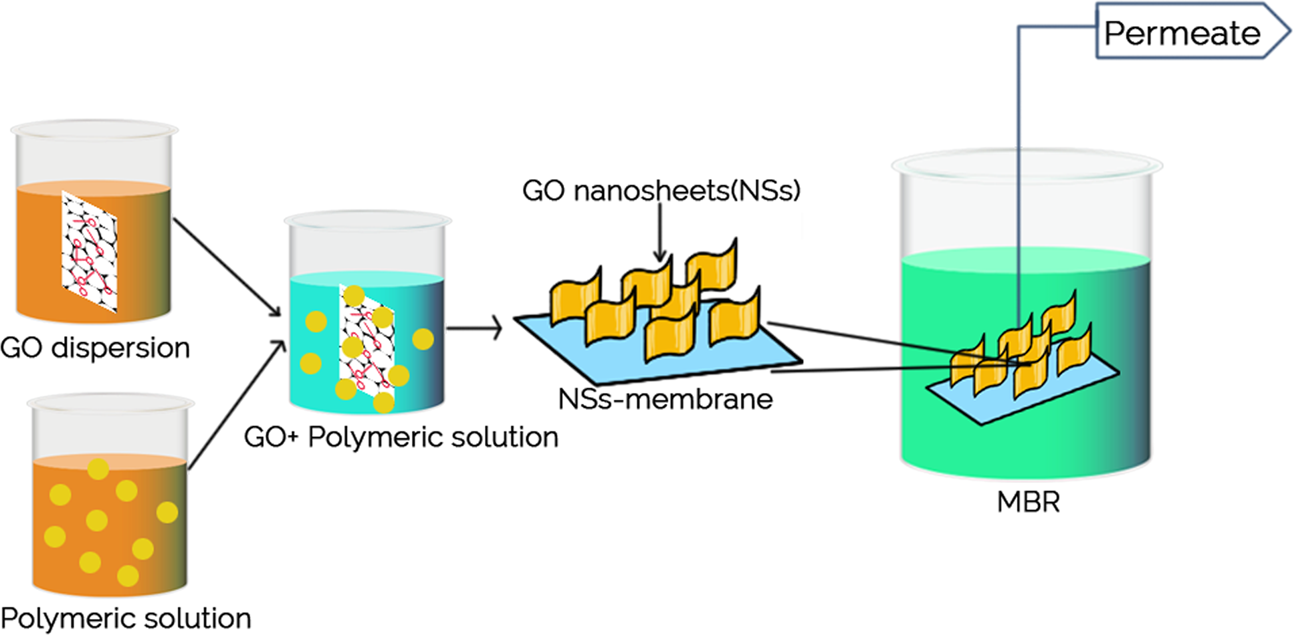

Fig. 8: Conceptual illustration of nanosheets membrane bioreactor (NSs-MBR) technology.
From: A critical review on nanomaterials membrane bioreactor (NMs-MBR) for wastewater treatment
At first, GO nanosheet was prepared by adding a known amount of graphite powder and mixed with a polymeric solution. After sonication, a homogeneous solution was observed and placed on a non-woven cloth by a casting knife. Then, the formed membrane was placed in the water bath for 24 h for using in the MBR module. Moreover, clean water was collected for further use.
