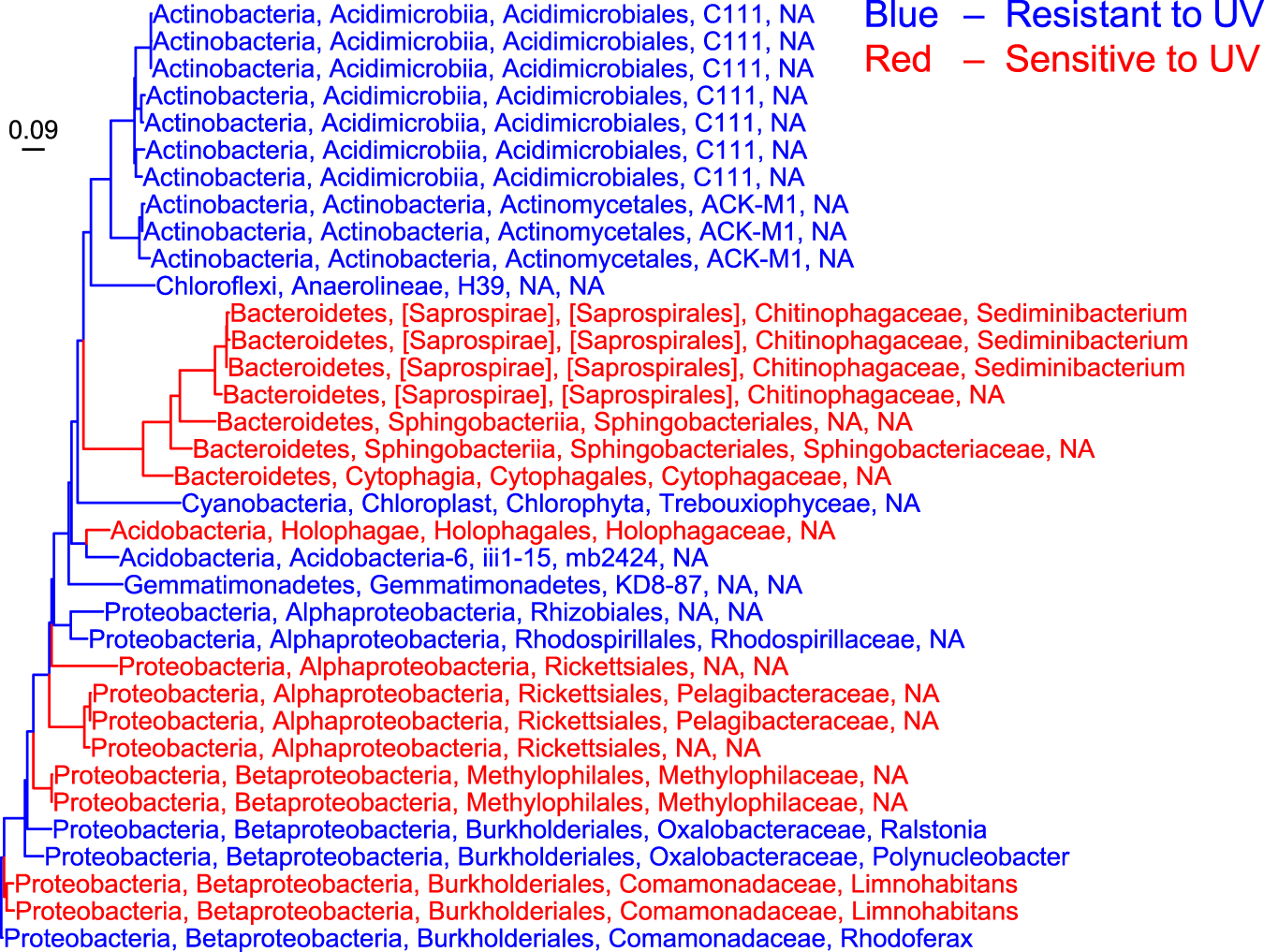

Fig. 3: Phylogenetic tree of ASVs identified as sensitive and resistant to UV.
From: Impact of UV irradiation at full scale on bacterial communities in drinking water
The inferred phylogenetic tree with branches colored by sensitivity and resistant to UV was created with ASVs recognized as having a signficant change with differential abundance analysis using DESeq2 (Padjusted < 0.05). Samples not exposed to UV (n = 5) were compared to UV irradiated samples (n = 9), with the dose as a numeric parameter. A negative log2fold change was considered a UV-sensitive taxa (red) and positive log2fold change as a UV-resistant taxa (blue). The scale bar shows an estimate of the substitutions per nucleotide position. See Supplementary Fig. 4 and Supplementary Table 2 for output data from DESeq2. See Supplementary Fig. 5 depicting the ASVs classified as sensitive and resistant to UV among all identified ASVs.
