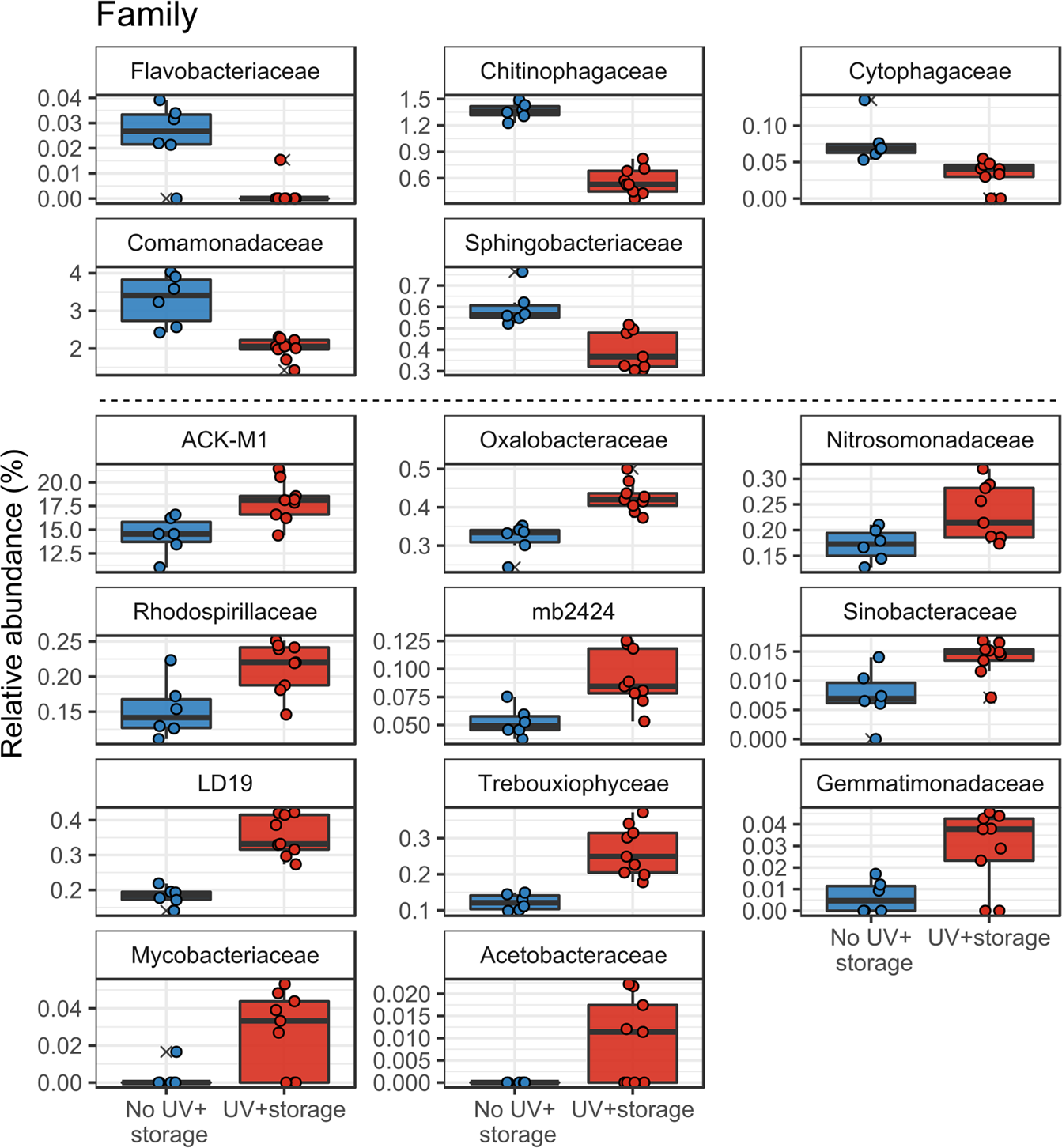

Fig. 5: Comparison of bacterial taxa at family level following storage of water.
From: Impact of UV irradiation at full scale on bacterial communities in drinking water
Relative abundance of bacterial taxa in water samples that were stored for 6 days at 7 °C, and were either not exposed (blue) or exposed (red) to UV. Only families with significant difference in relative abundance between groups (P < 0.05, one-way ANOVA) are shown; see Supplementary Figs 11–15 for full data set. Families are ordered with the most relative change in the top left with subsequent decrease. The boxes show the interquartile range, the line inside each box represents the median, whiskers show maximum and minimum values, and the crosses show outliers. n = 6 for no UV samples and n = 9 for UV-irradiated samples. Samples irradiated at different UV doses were grouped for this analysis.
