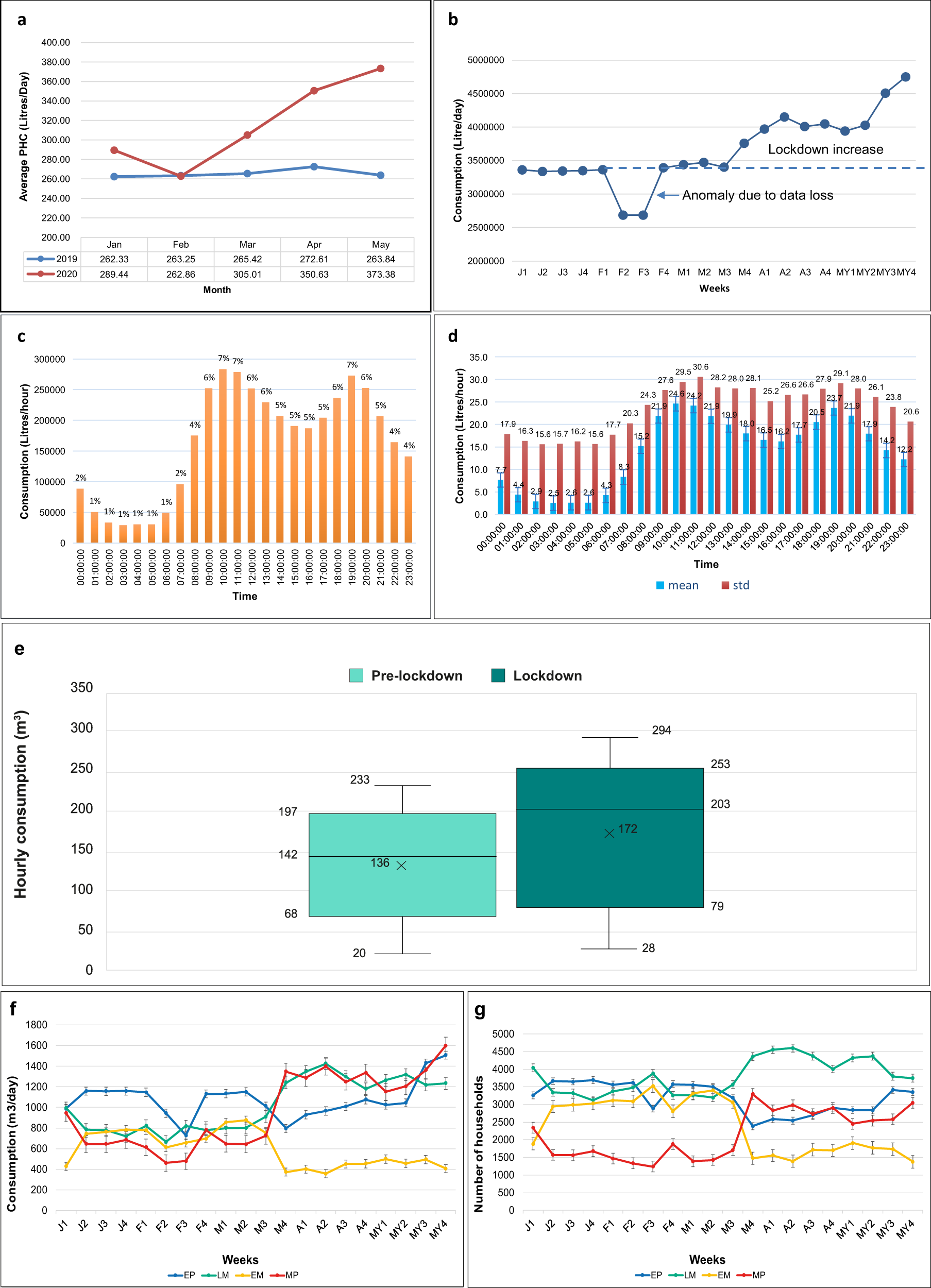

Fig. 1: Households’ consumption patterns and trends before and during the COVID-19 lockdown in the UK.
From: Quantifying the impact of the COVID-19 lockdown on household water consumption patterns in England
a Differences in per household consumption (PHC) for January–May 2019 and 2020. b Weekly average 24-hour consumption for all households–January week 1 (J1) to May week 4 (MY4)—showing normal consumption trend, anomaly due to data loss and increase in consumption during lockdown period. c Hourly consumption patterns, showing households’ average proportion of hourly consumption to their daily average. d Households’ hourly mean and standard deviation consumption in litres. e Boxplots illustrating the comparison between pre-lockdown and lockdown total consumption in cubic metres (m3). Value at the top of whisker is the maximum consumption; bottom of whisker is the minimum consumption; top bound of the box is the upper quartile value; bottom bound of the box is the lower quartile value; the line in the centre of the box is the median and the x in the centre of the box is the mean (\(\bar x\)). f Weekly cluster consumption trend showing how much each of the four clusters consumes per week in m3. The error bars indicate standard deviation (σ). g Weekly number of households per cluster. The error bars indicate standard deviation (σ).
