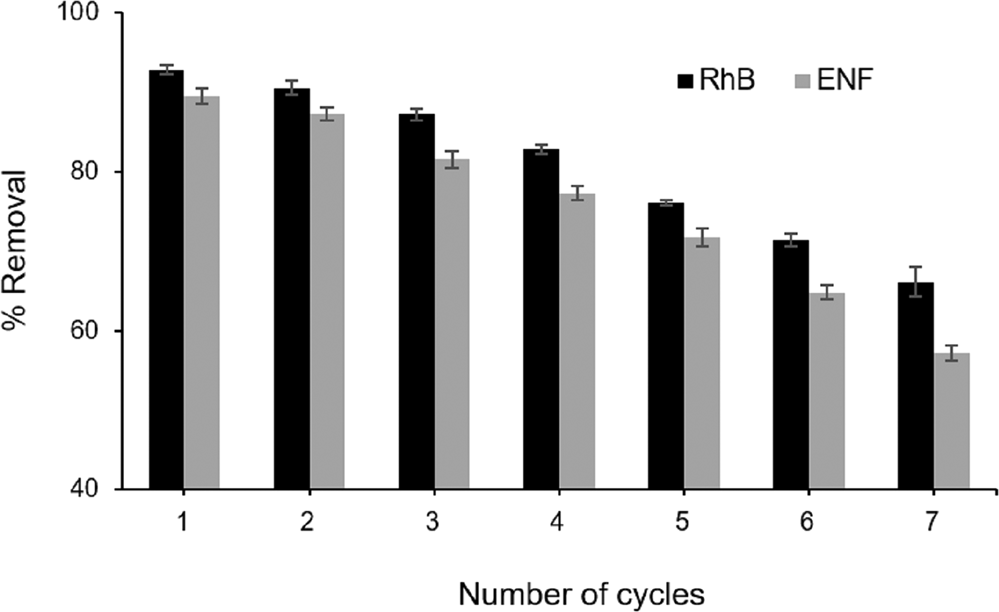

Fig. 4: Effect of regeneration cycles on the removal of ENF and RhB.

Removal conditions: adsorbent amount: 0.24 g, RhB concentration: 10 mg L⁻¹, ENF concentration: 10 mg L⁻¹, sonication time: 23 min, and pH: 7. Error bars represent standard deviations.
