Fig. 2: Inter-sector flows of excess pollution discharge from the production end in Jiangsu Province to the consumption end in Jiangsu and other Chinese provinces. | npj Clean Water

Fig. 2: Inter-sector flows of excess pollution discharge from the production end in Jiangsu Province to the consumption end in Jiangsu and other Chinese provinces.

From: Spatial analysis connects excess water pollution discharge, industrial production, and consumption at the sectoral level

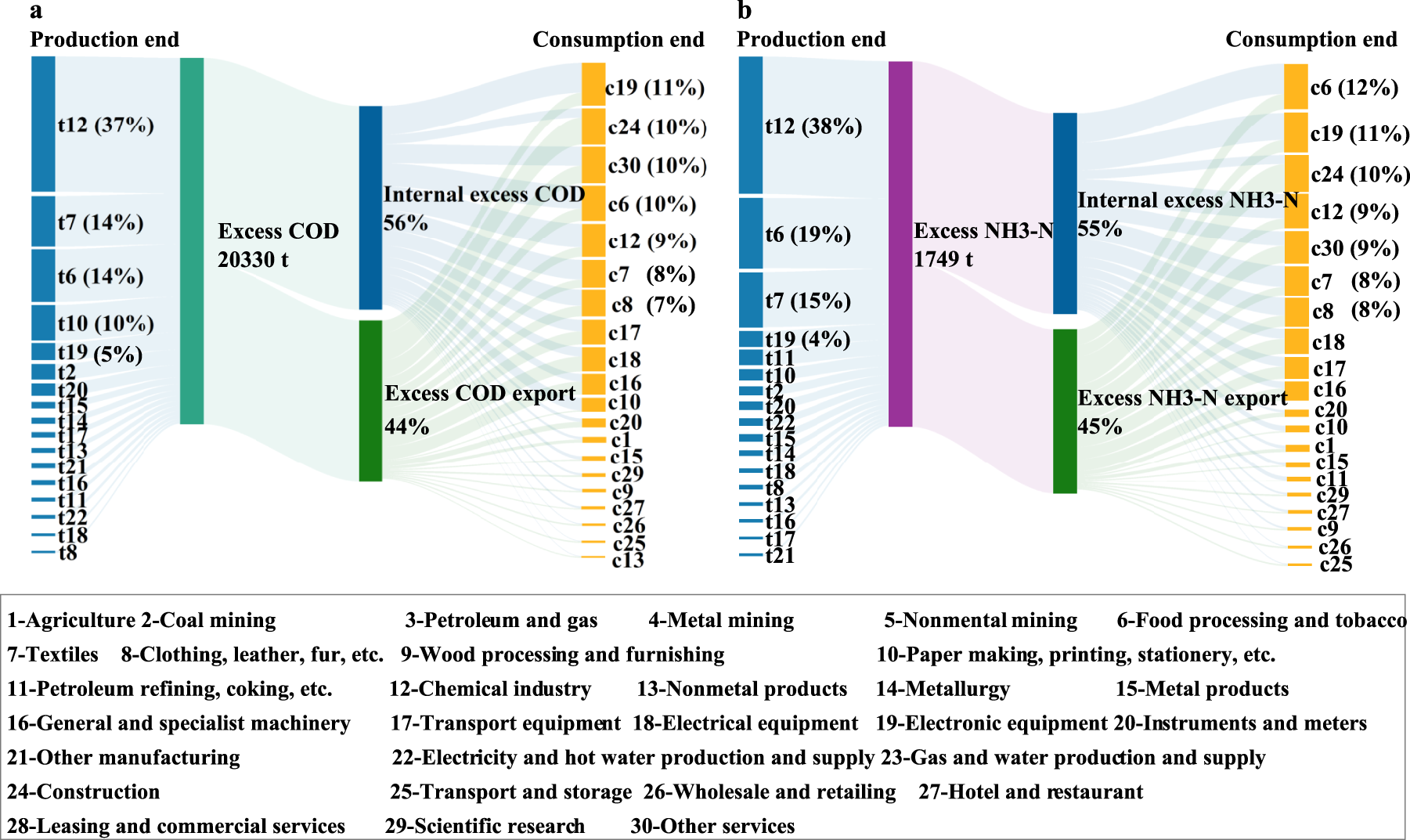

Fig. 2: Inter-sector flows of excess pollution discharge from the production end in Jiangsu Province to the consumption end in Jiangsu and other Chinese provinces.

a excess COD and b excess NH3-N. Sectors with excess COD (from both production and consumption) of <100 tons/yr and sectors with an excess NH3-N of <10 tons/yr are not shown in this figure. The list of 30 Chinese provinces is shown in Supplementary Table 1.
