Fig. 8: Effects of environmental variables on core features and predicted pathways.

From: Characterization of the core microbial community governing acidogenic processes for the production of valuable bioproducts

Fig. 8

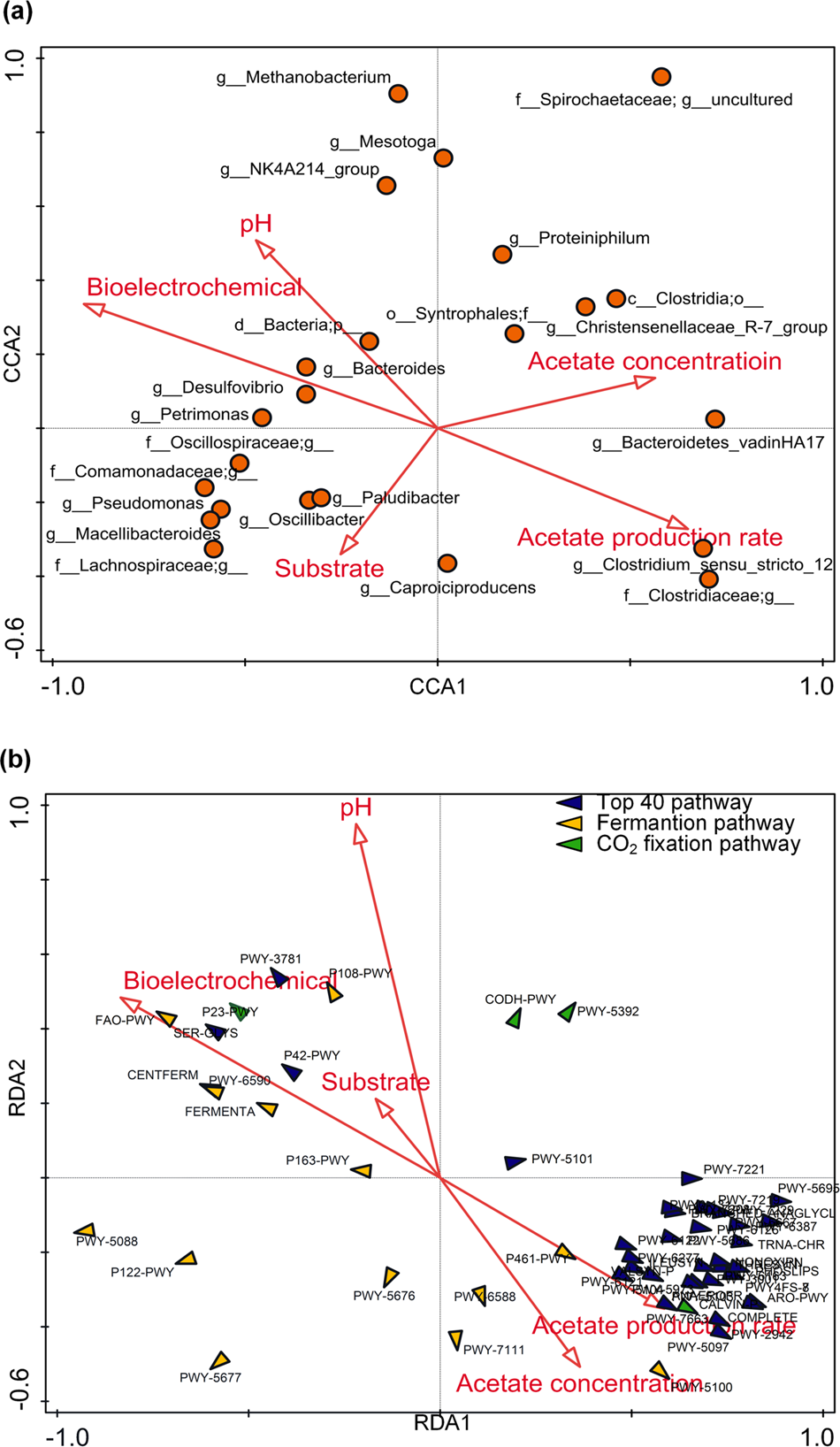

a Canonical correlation analysis (CCA) of core features, environmental variables, and acetogenic performance as well as b redundancy analysis (RDA) of predicted pathways, environmental variables, and acetogenic performance. The full name of each pathway can be found on MetaCyc database (https://metacyc.org/).
