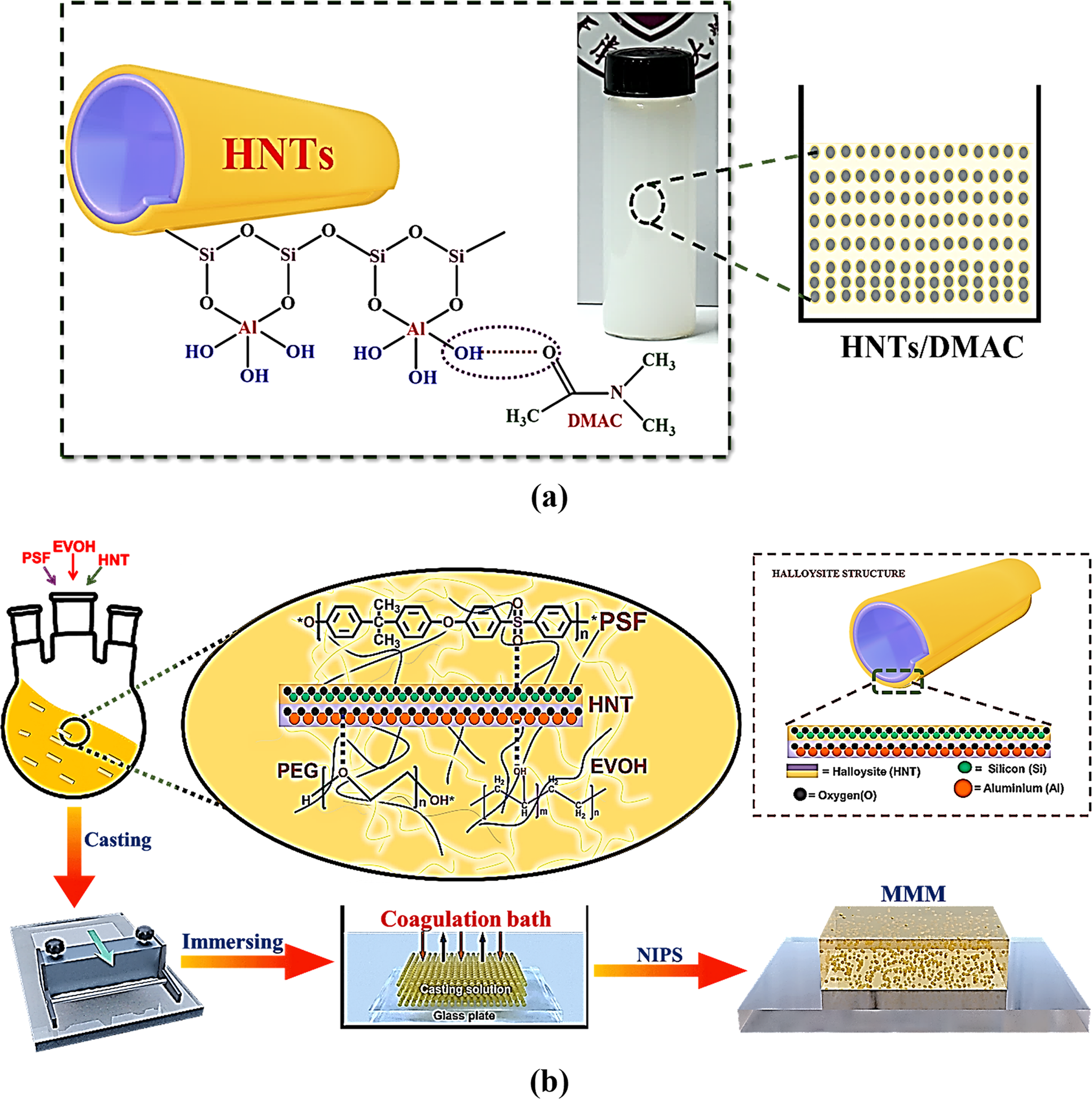

Fig. 10: Proposed interactions between PSF, EVOH, PEG, DMAc and HNTs and Formation of asymmetric MMM.

a Proposed interactions between HNTS and DMAc solvent, b Depiction of the process of membrane synthesis, proposed interactions amongst PSF, EVOH, and HNTS.
