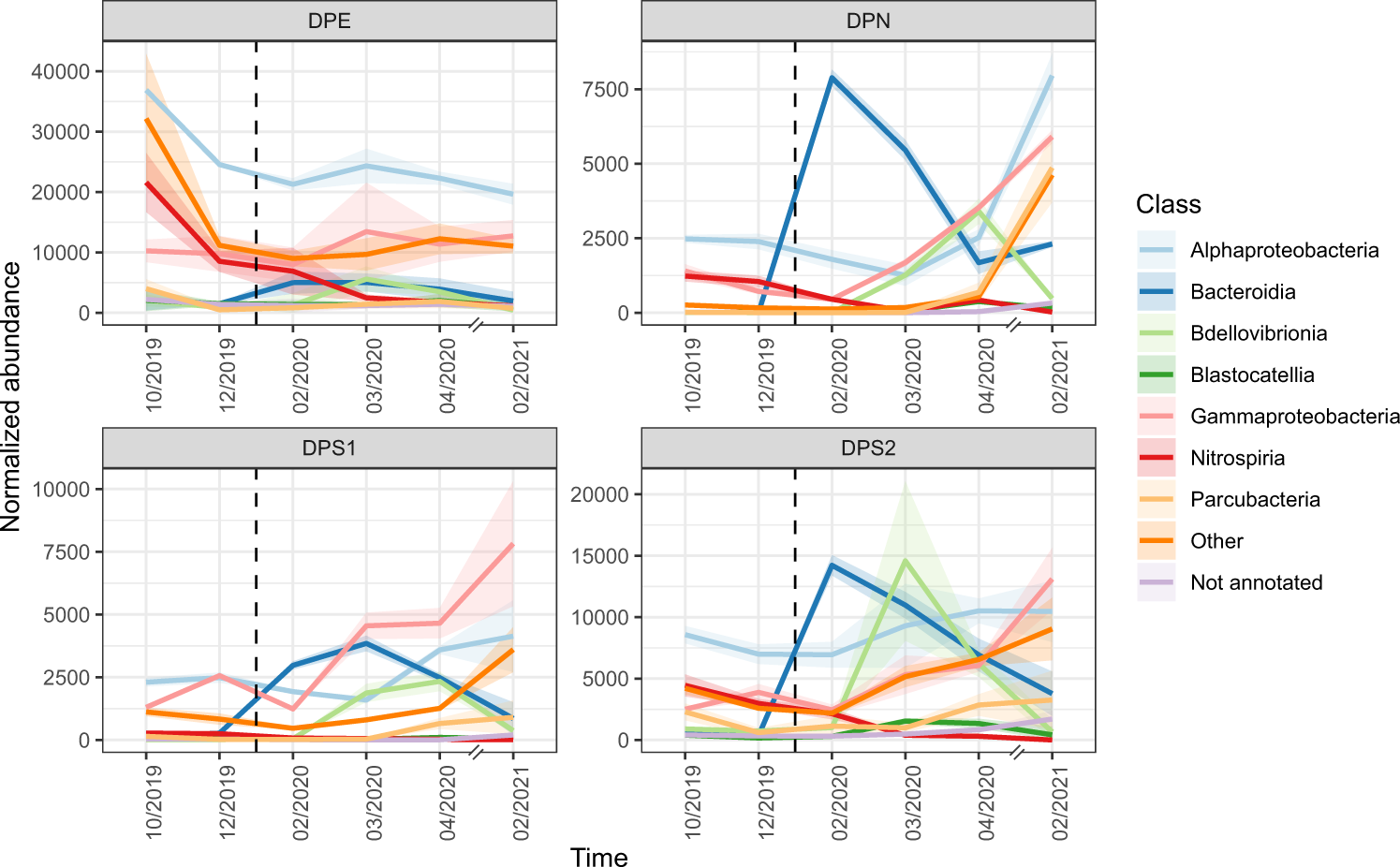

Fig. 5: Normalized abundance of the most abundant classes within the DWDS.

From: Succession of bacterial biofilm communities following removal of chloramine from a full-scale drinking water distribution system

Fig. 5

The dashed, vertical line represents the end of chloramination. Shaded areas represent 90% confidence intervals, assuming a normal distribution of replicate values at each time point (n = 3 at each sampling location and time). Note that the x-axis is not to scale: the final samples were taken 10 months after the penultimate samples.
