Fig. 5: Relationships between dominant genera and nitrogen cycle genes.
From: Using static magnetic field to recover ammonia efficiently by DNRA process

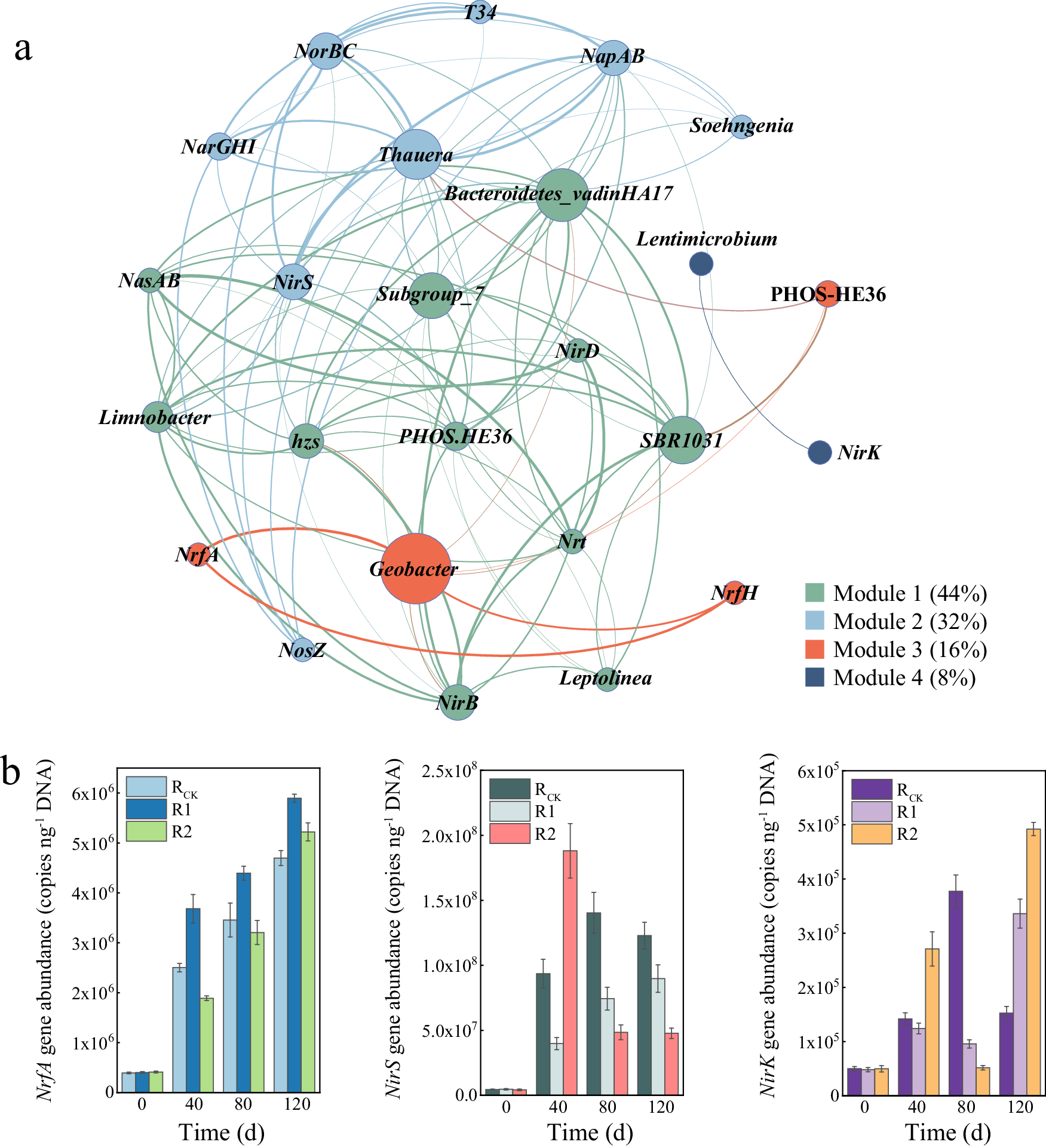

a Network analysis based on the relationship between dominant genera and functional genes. b q-PCR results for functional genes of nrfA, nirS and nirK. Data indicate average, and error bars represent standard deviation of the results from three independent sampling, each tested in triplicate.
