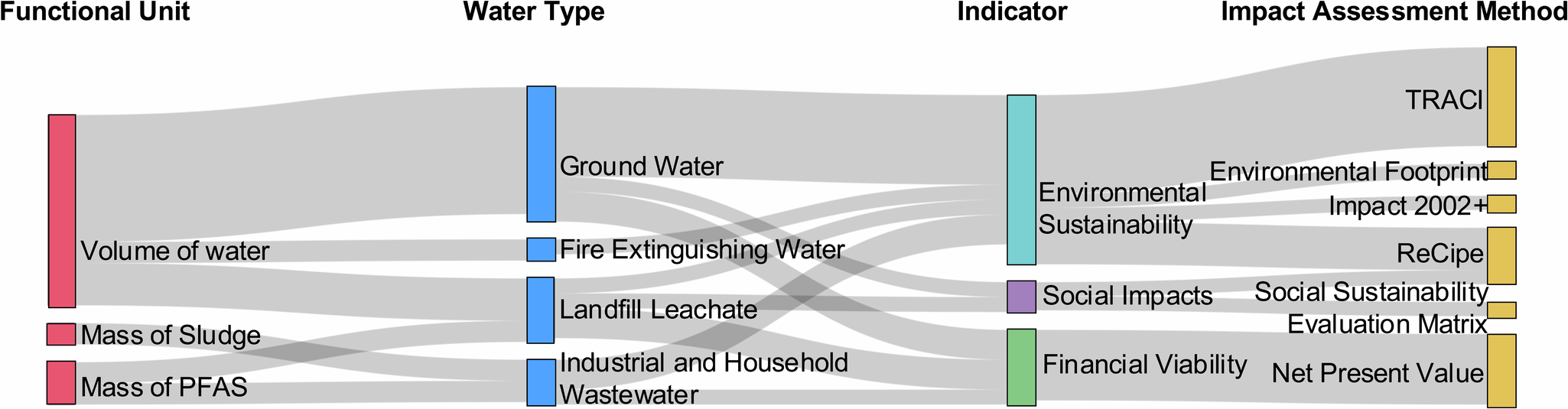

Fig. 1
From: Balancing sustainability goals and treatment efficacy for PFAS removal from water
Literature review results for the basis of functional unit and impact assessment method by sustainability indicator (environmental sustainability, social impacts, and financial viability), and water type (ground water, fire extinguishing water, drinking water, landfill leachate, subcritical water, household wastewater). The thickness of each line corresponds to the number of studies reviewed. Full details can be found in Supplementary Table 5 of the Supplementary Information.
