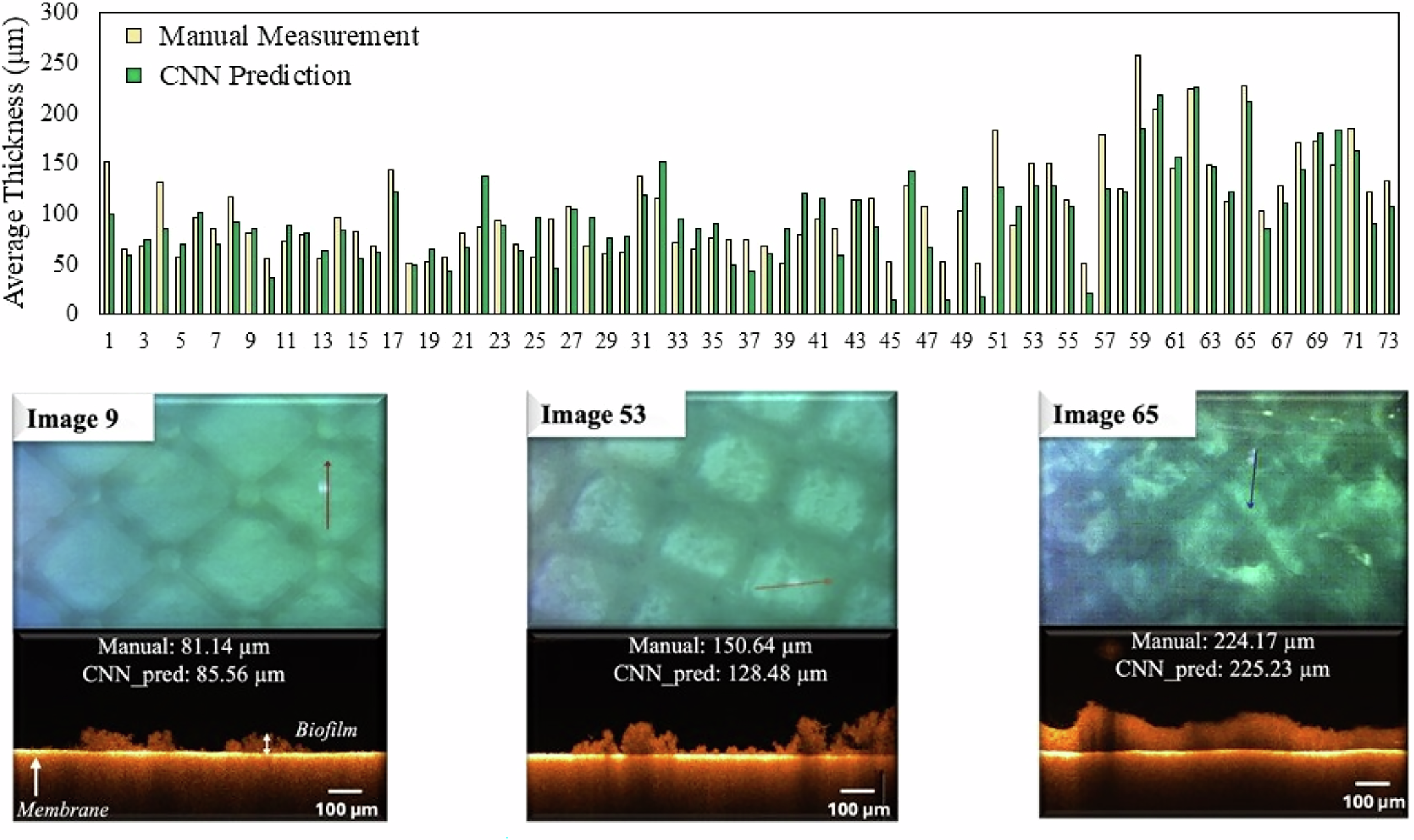

Fig. 5: Correlation of experimental and predicted average biofilm thickness in the testing stage.
From: Precise biofilm thickness prediction in SWRO desalination from planar camera images by DNN models
Along with three images illustrating the membrane surface and cross-section OCT images. “Manual” denotes the average biofilm thickness obtained by manual measurement while “CNN_pred” represents the average biofilm thickness predicted by CNN-Reg model.
