Fig. 8: Obstacle degree results of various impact factors in the YRD.

From: Coupled and coordinated development of water-energy-food-ecology-land system in the Yangtze River Delta, China

Fig. 8

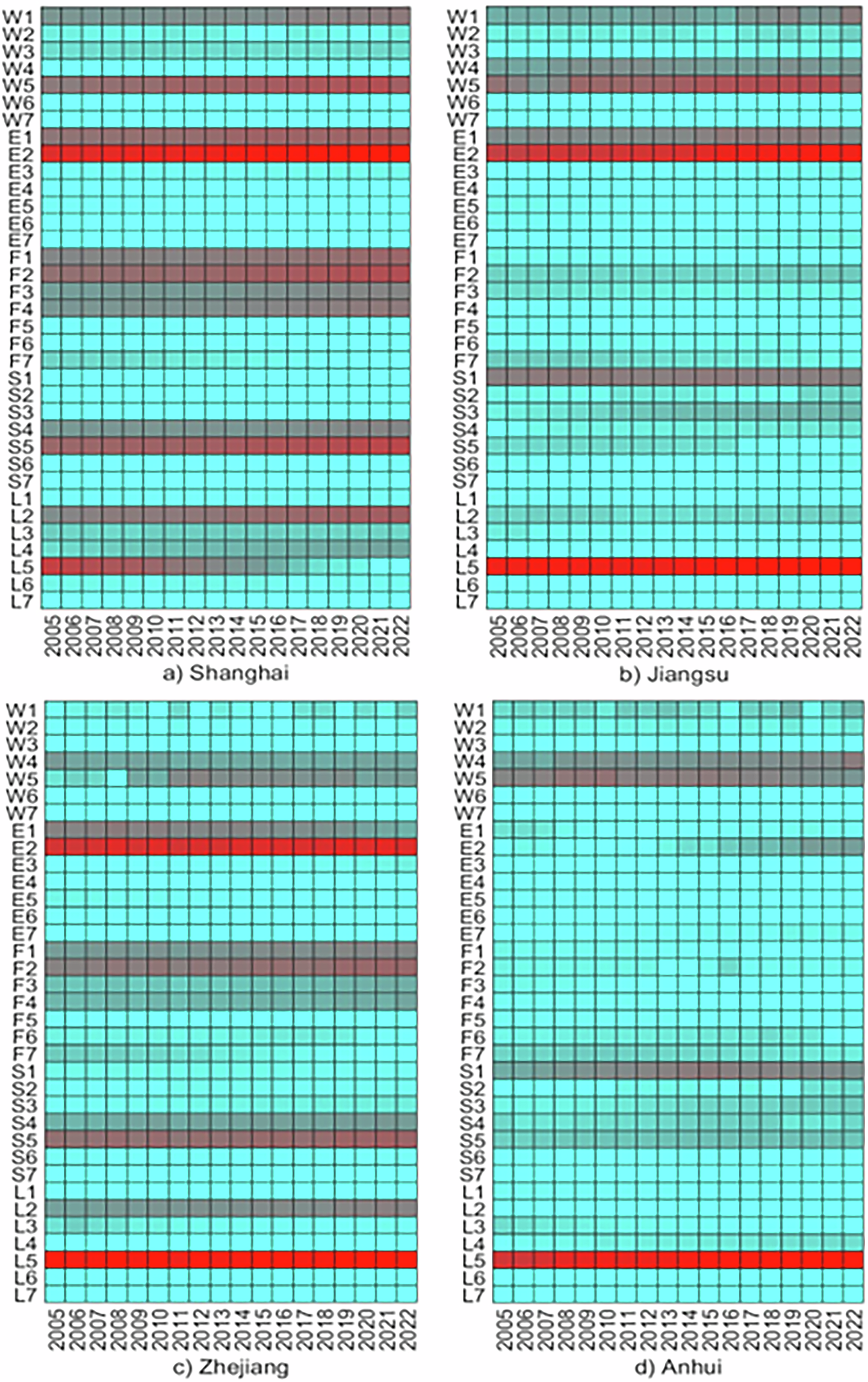

In the picture, the more pronounced red color indicates the greater degree of influence of the obstacle factor on DCC. a Represents the DCC obstacle factors affecting Shanghai, b represents the DCC obstacle factors affecting Jiangsu, c represents the DCC obstacle factors affecting Zhejiang, d represents the DCC obstacle factors affecting Anhui.
