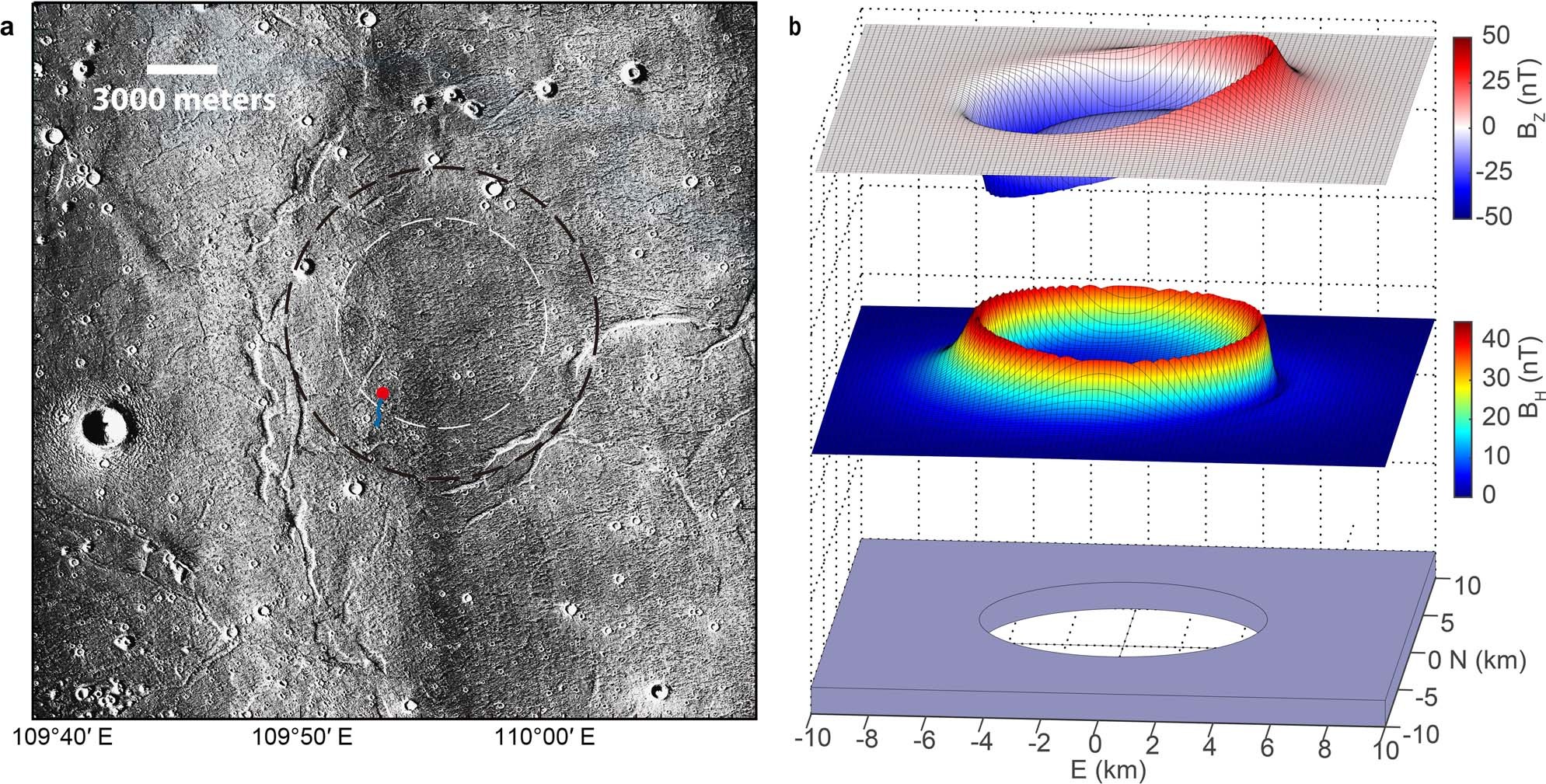

Extended Data Fig. 5: The ghost crater in the Zhurong’s landing region.
a, Combined images from Context camera (CTX: D22_035786_2060_XN_26N250W and CTX: F04_037553_2068_XN_26N250W) enhanced to better identify the ghost crater. The white and black dashed lines indicate the inner and outer rings of the double-ringed structure of a ghost crater, respectively. The Zhurong’s landing site and route are denoted by the red dot and the blue curve, respectively. The horizontal white bar indicates the scale bar of the map. b, Modeling results of the ghost crater showing the distributions of vertical magnetic component and horizontal intensity in the top and middle panels, respectively. The cylindrical hole, which has a diameter of 10 km, corresponds to the inner ring of the ghost crater.
