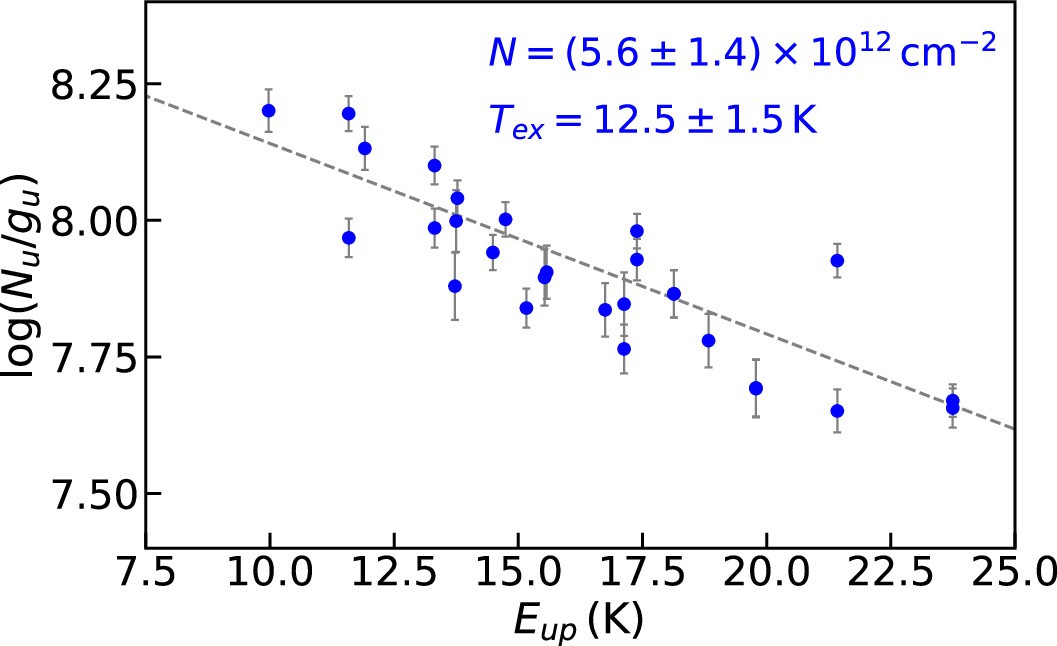

Extended Data Fig. 4: Rotational diagram for the selected transitions of 2,5-CT (depicted in Fig. 1) observed toward G+0.693.
From: A detection of sulfur-bearing cyclic hydrocarbons in space
Data points (blue dots) are presented as mean values ± standard errors of the means (1σ errors). The best linear fit to the data points is shown using a gray dashed line. The values for the molecular column density, N, and the excitation temperature, Tex, obtained from the fit are shown in blue.
