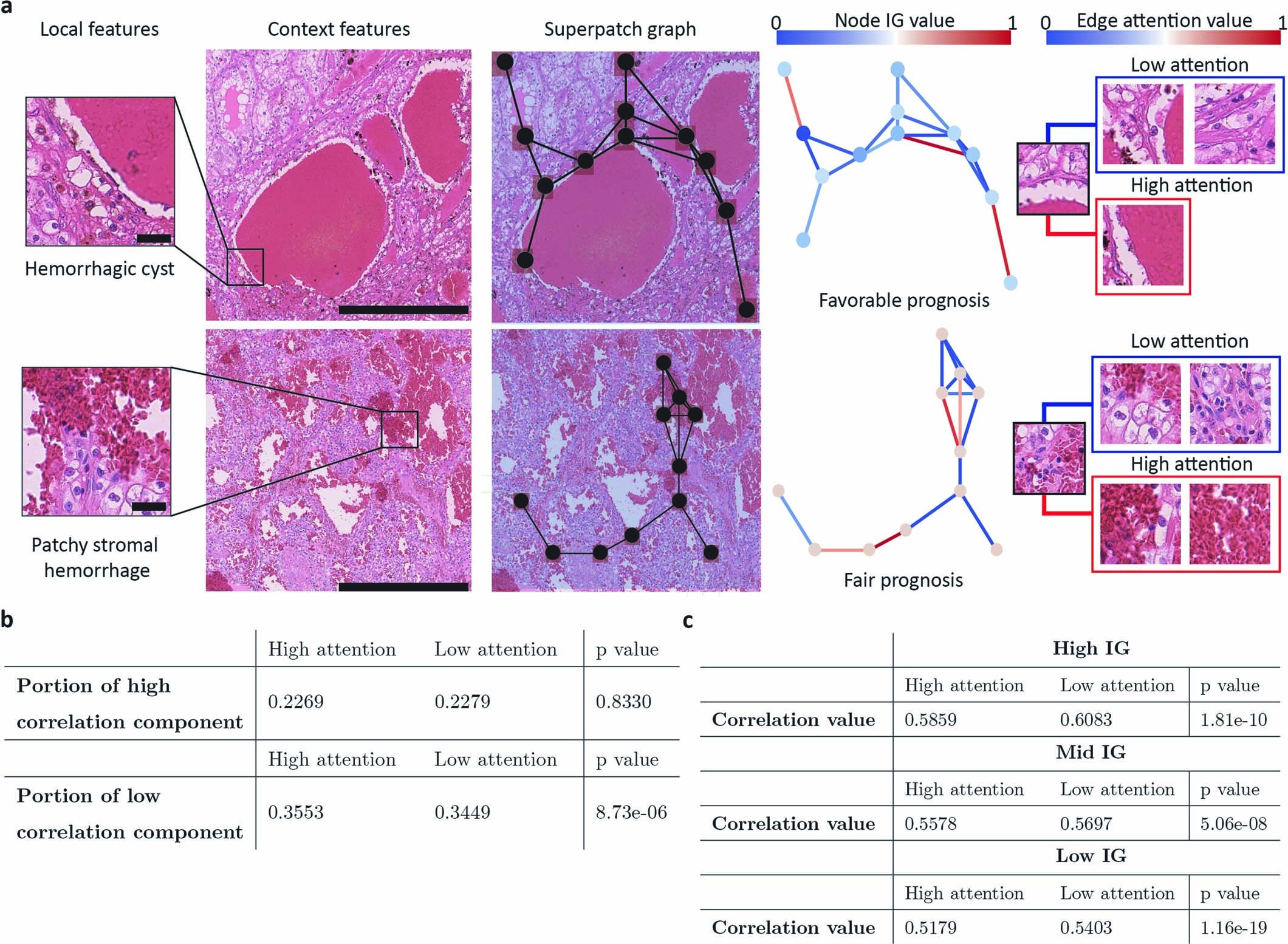

Extended Data Fig. 4: Heterogeneous tumoral architecture features extracted by TEA-graph and effect of attention mechanism to extract the context features.
a, The node IG value is represented by the color of each node, and the edge attention score is represented by the color of each edge. Hemorrhagic cyst (top), patchy stromal hemorrhage (bottom). Scale bar, 100 μm (left), 400 μm (right). Patch size of last column is 80 μm. b, Portion of pairs that had low or high correlation within pairs that had high or low attention. c, Median feature correlation between two nodes connected with low or high attention edge within low, mid, and high IG group. (b-c), The p-value is calculated by two sample t-test (n = 944).
