Extended Data Fig. 10: Pathological features of each IG group misclassified by TEA-graph. | Nature Biomedical Engineering

Extended Data Fig. 10: Pathological features of each IG group misclassified by TEA-graph.

From: Derivation of prognostic contextual histopathological features from whole-slide images of tumours via graph deep learning

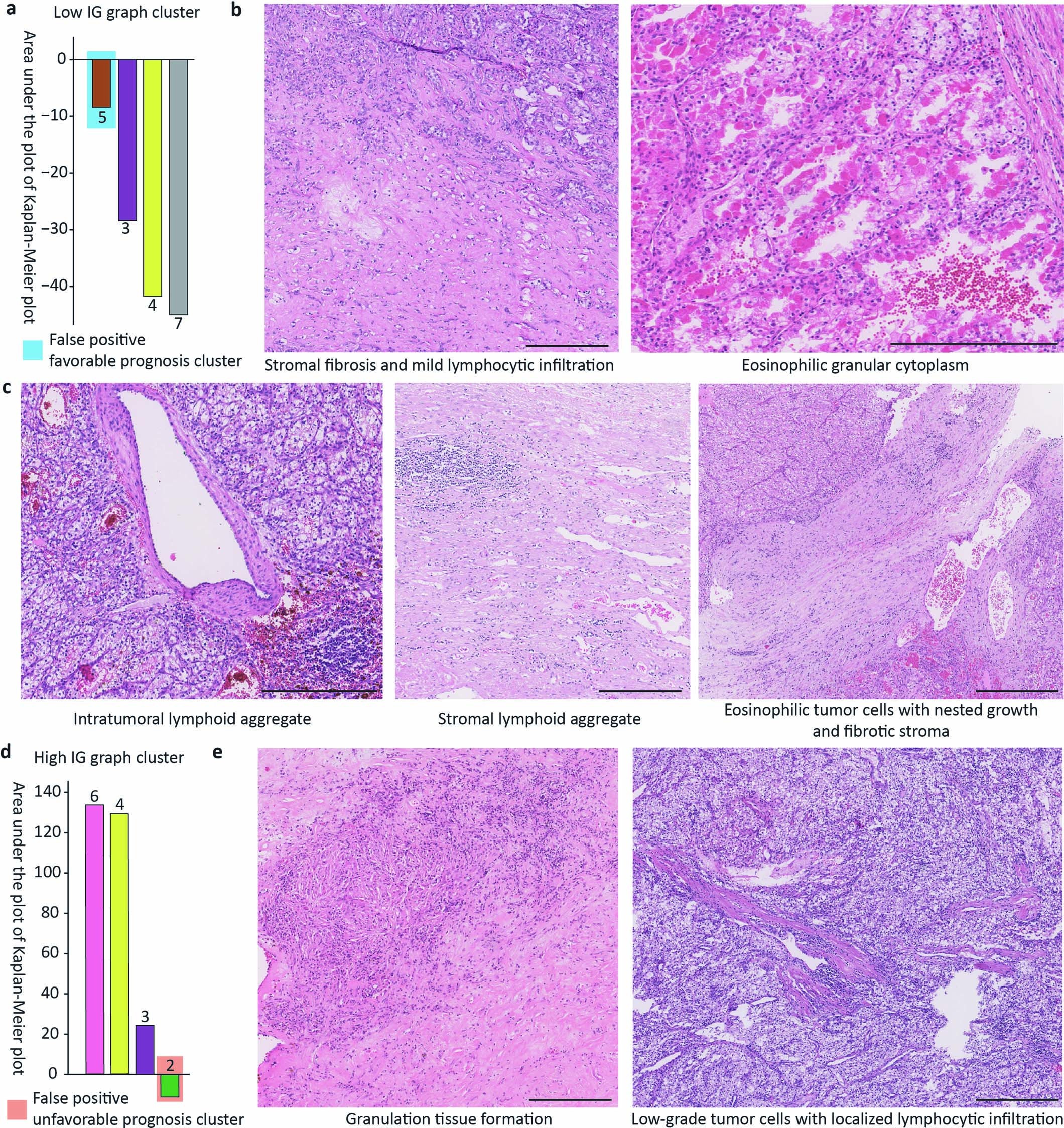

Extended Data Fig. 10: Pathological features of each IG group misclassified by TEA-graph.

a, False positive clusters of the low IG group, which have a small area under the curve value for the Kaplan–Meier plot. b-c, Pathological features of low IG group cluster five. d, False positive cluster of the high IG group, which has a negative area under the curve value for the Kaplan–Meier plot. e, Pathological features of high IG group cluster two. (b, c, e), Scale bar, 400 μm.
