Extended Data Fig. 2: Correlation measurement between the risk and IG value.

From: Derivation of prognostic contextual histopathological features from whole-slide images of tumours via graph deep learning

Extended Data Fig. 2: Correlation measurement between the risk and IG value.

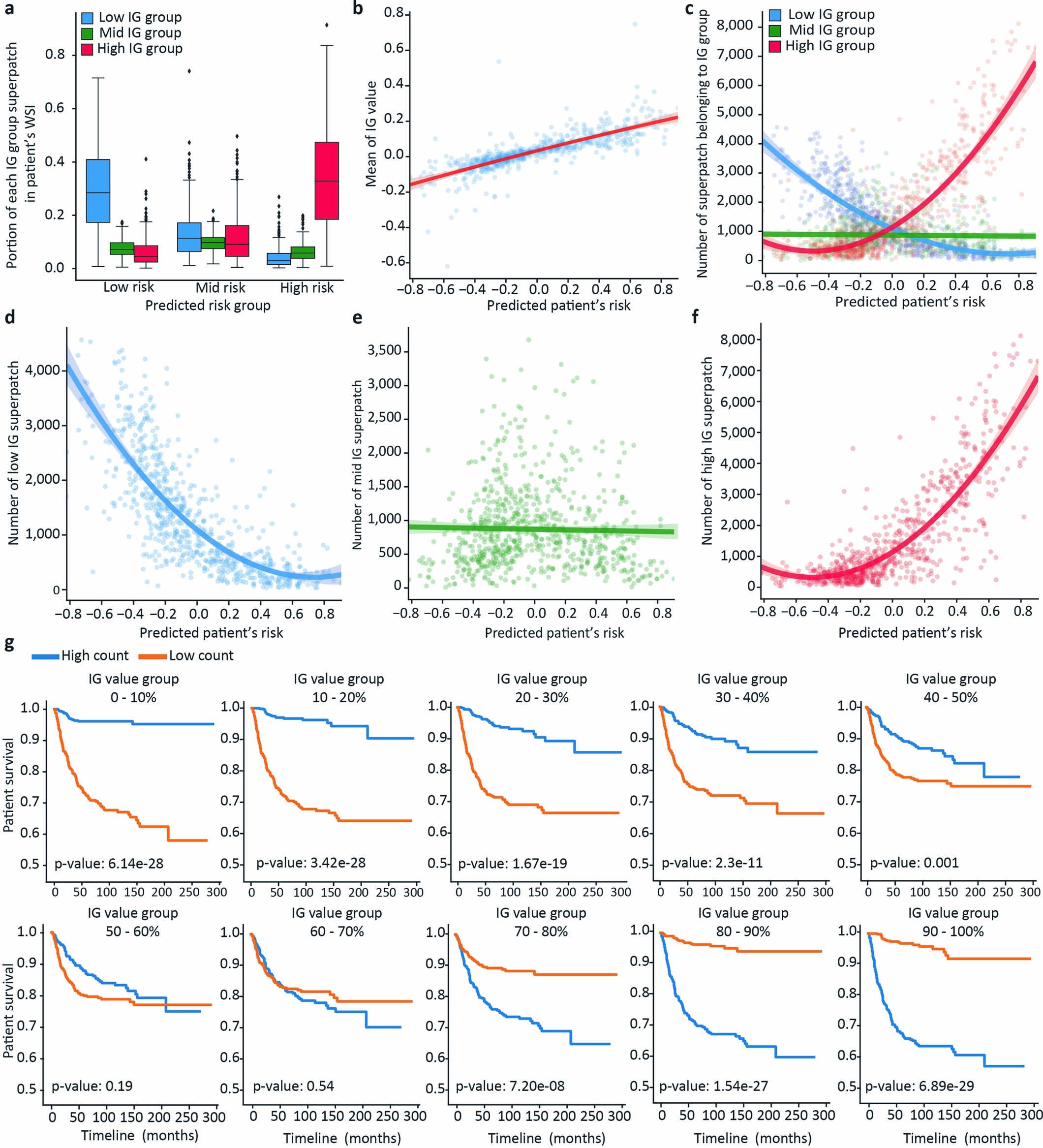

a, Numbers of patches in the low, mid, and high IG groups for each risk group. IQR of box plot is between Q1 and Q3 and center line indicates median value. Maxima is Q3 + 1.5*IQR and minima is Q1 – 1.5*IQR (n = 259 (Low risk, Mid risk), n = 223 (High risk)). b, Scatter plot between the risk and IG values. c, Merged scatter plot between the risk values and numbers of patches in each IG group. d-f, Scatter plots between the risk values and numbers of patches for each IG group. g, Kaplan-Meier plot analysis according to IG values quantized by 10% of entire IG values. P-values were calculated through two-sided log-rank test (n = 831).
