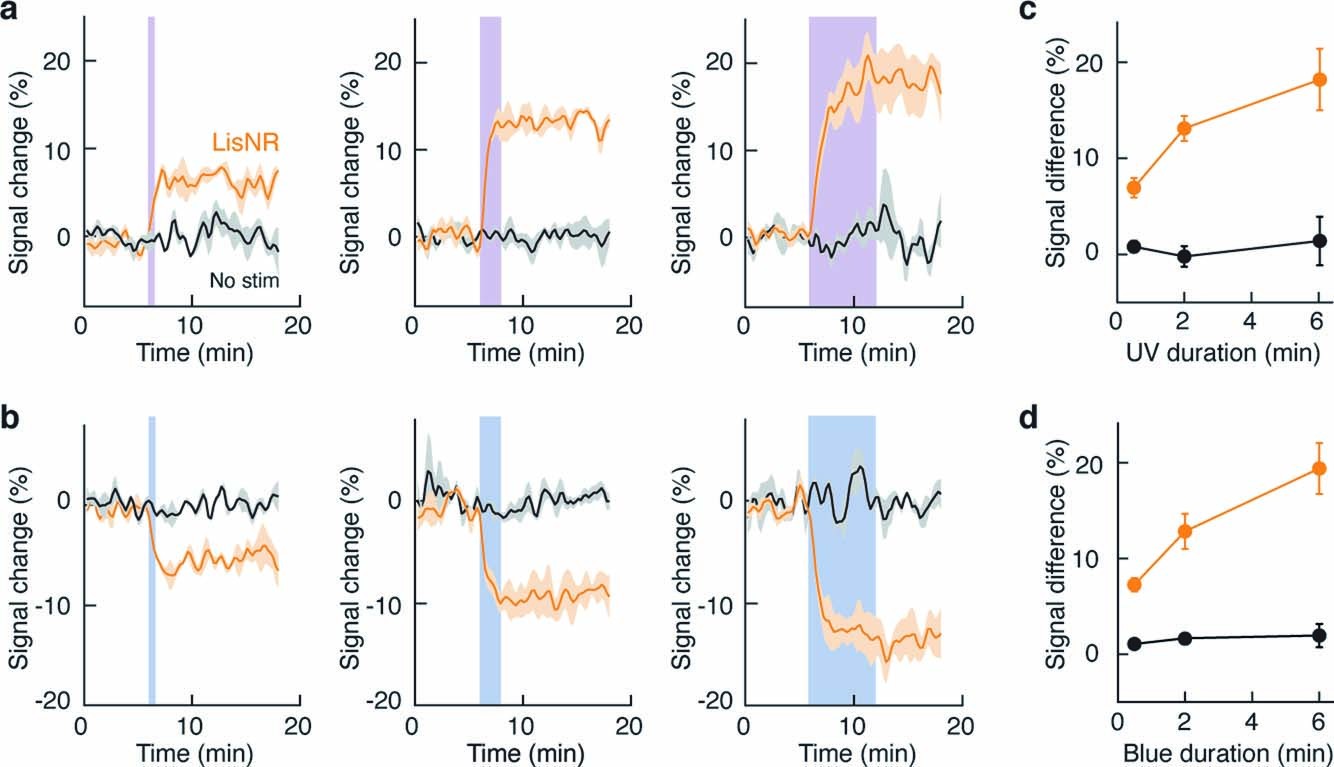

Extended Data Fig. 1: Light-LisNR response as a function of stimulus duration.
From: Mapping light distribution in tissue by using MRI-detectable photosensitive liposomes
a, MRI signal in response to UV irradiation of Light-LisNRs (orange) over varying durations: 0.5 min (left), 2 min (middle), and 6 min (right). Corresponding unilluminated control data shown in black. Shaded margins denote s.e.m. of n = 3 animals. b, Equivalent time course data for blue illumination. c, Signal differences observed following UV irradiation (orange) or control treatment (black) of LisNRs over the durations indicated. Error bars denote s.e.m. of n = 3 animals. d, Equivalent signal difference data for blue illumination.
