Extended Data Fig. 5: Baseline visual reaction time.

From: Evoking natural thermal perceptions using a thin-film thermoelectric device with high cooling power density and speed

Extended Data Fig. 5

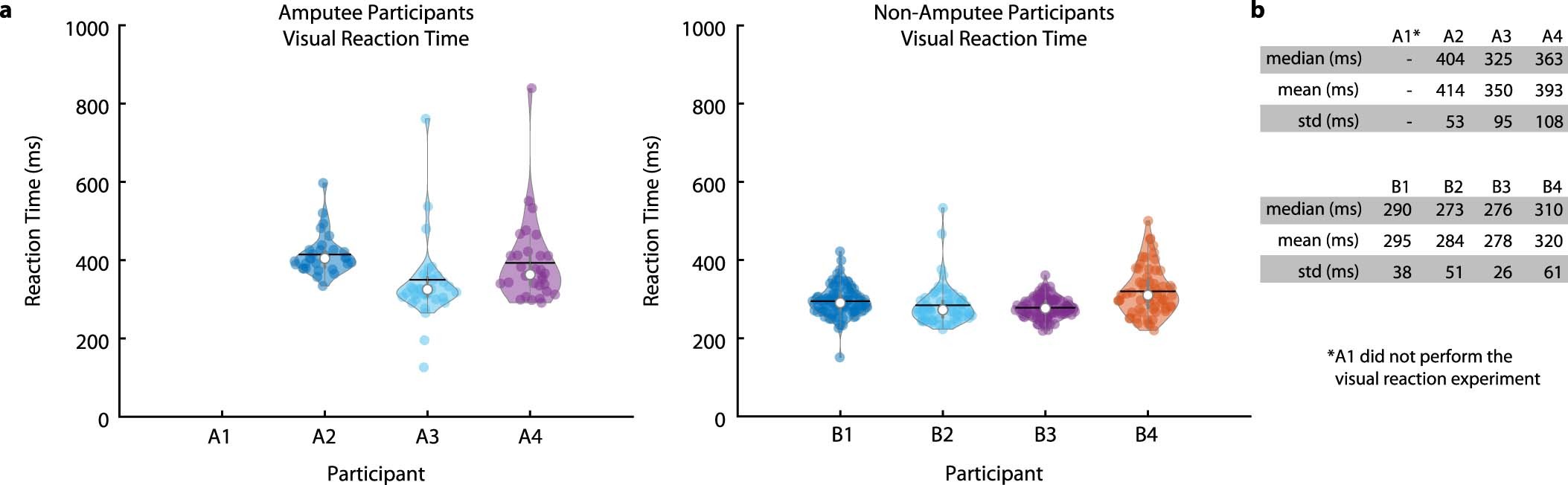

a, The amputee and non-amputee participants performed a visual reaction time task using the same button used in the thermal stimulation task. Data represents independent trials; n = 30 for A2, A3, and A4; n = 90 for B1and B3; n = 60 for B2 and B4. b, Performance metrics. Participant A1 did not perform the visual reaction time task. The violin plot whiskers represent the minimal and maximal values, the vertical lines indicate the first and third quartiles, the horizontal lines are means, and the white dots are the medians. The average reaction time for each non-amputee participant was used to normalize the thermal stimulation reaction time results and compare across individuals.
