Extended Data Fig. 9: Luciferase imaging FS hESCs transplant in NSG and B6 mice. | Nature Biomedical Engineering

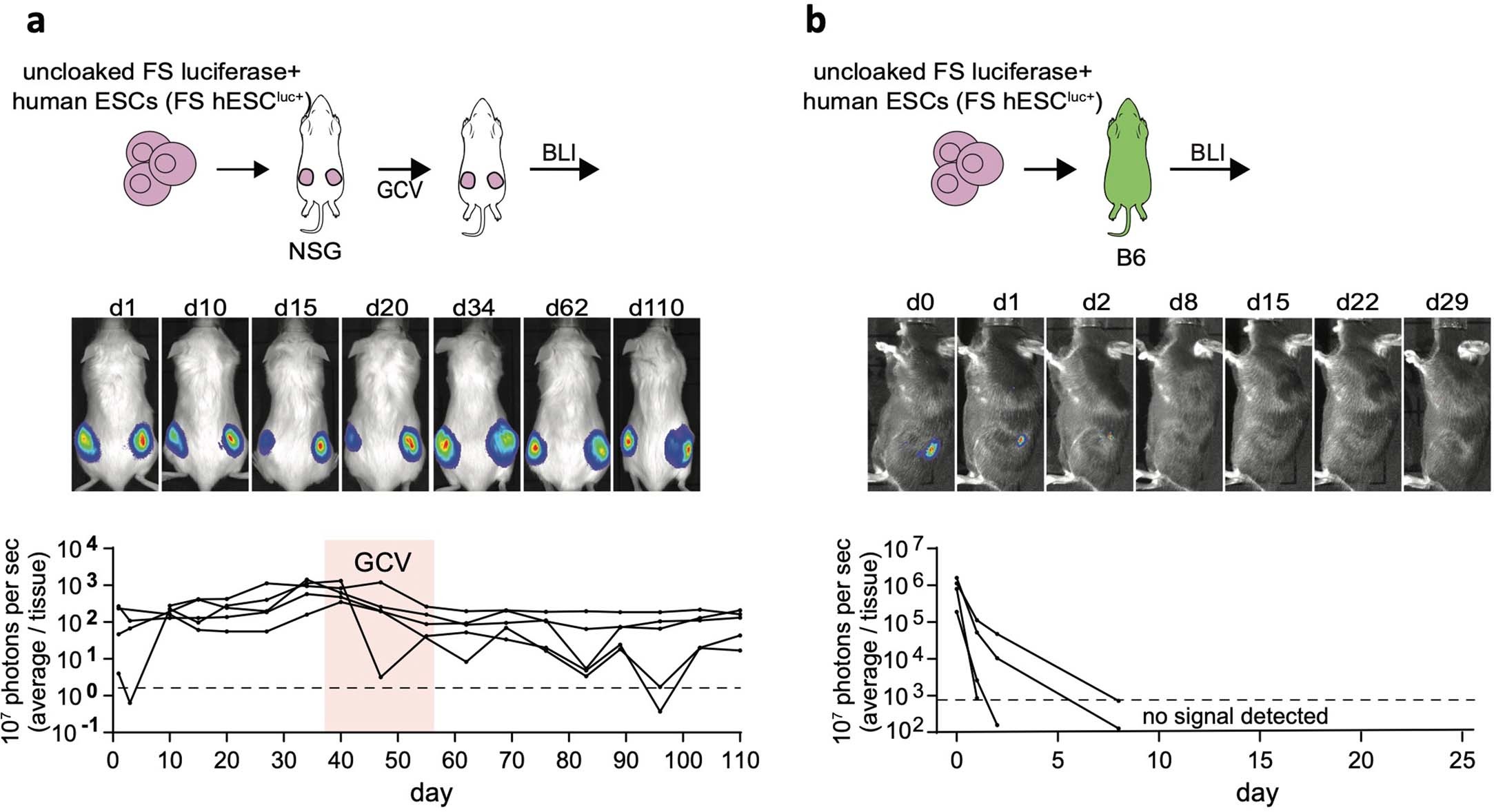

Extended Data Fig. 9: Luciferase imaging FS hESCs transplant in NSG and B6 mice.

From: Immune-privileged tissues formed from immunologically cloaked mouse embryonic stem cells survive long term in allogeneic hosts

Extended Data Fig. 9: Luciferase imaging FS hESCs transplant in NSG and B6 mice.The alternative text for this image may have been generated using AI.

10-12 million luciferase-expressing uncloaked FS hESCs (FS hESCsluc+) were injected into a. NSG (n = 5) or b. B6 (n = 4) recipients and monitored by BLI imaging. Black dotted line shows the detection limit. Images show one representative mouse per group. NSG recipients were treated with GCV to halt growth of human cell transplant. BLI images were taken approximately 15 min after IP injection with luciferin, with 10 second exposure time.

Source data
