Extended Data Fig. 7: Full results of Sensory Organization Test (SOT).

From: Restoration of sensory feedback from the foot and reduction of phantom limb pain via closed-loop spinal cord stimulation

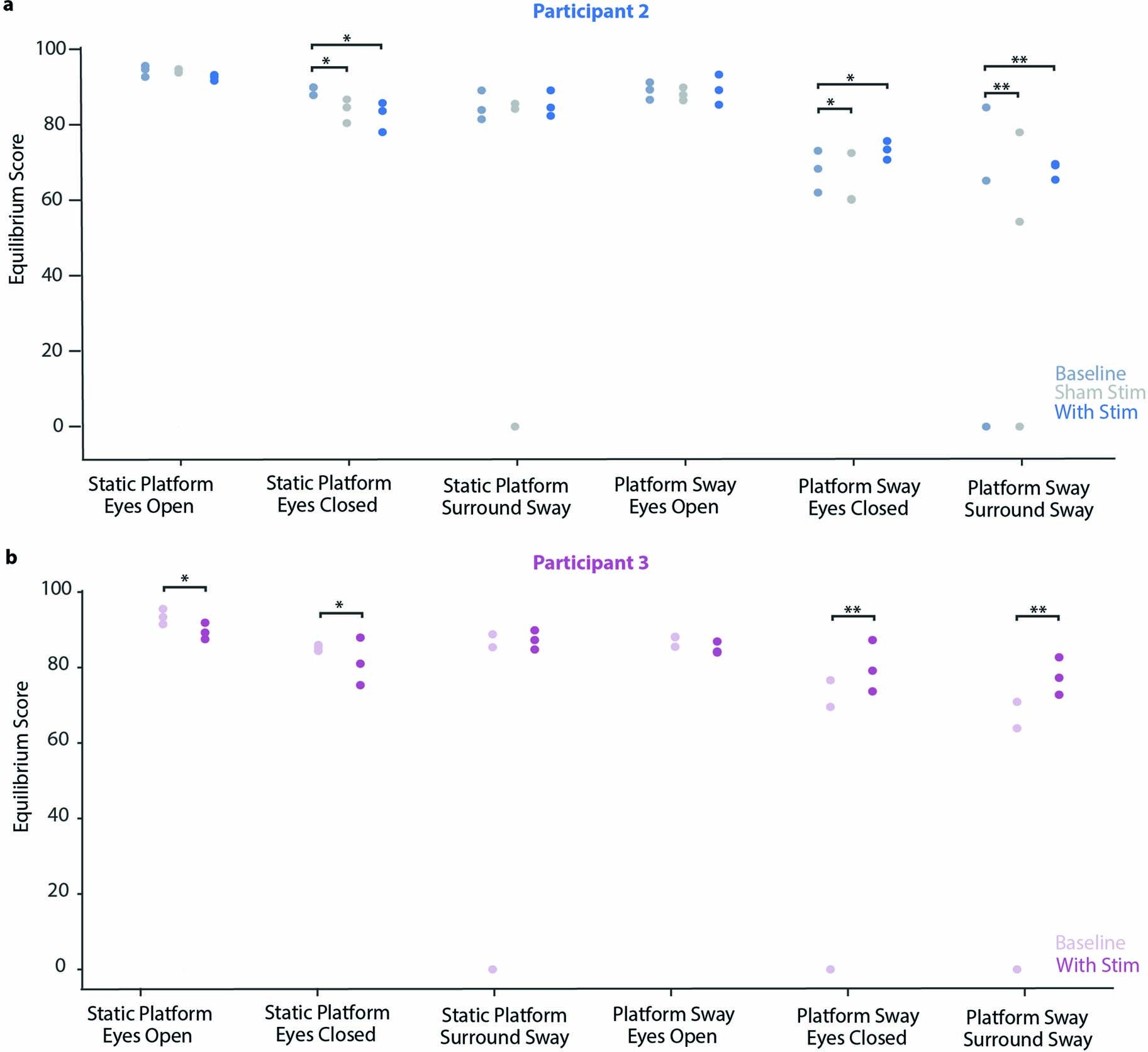

Extended Data Fig. 7: Full results of Sensory Organization Test (SOT).

a, Participant 2 performed the SOT without stimulation (light blue) with sham stimulation (that is, stimulation in the residual limb only, gray) and with stimulation (stimulation in the prosthetic foot, dark blue). Sham stimulation substantially decreased performance for three of six conditions (with greater than minimum detectable change [MDC, 3.98]), suggesting that stimulation on the residual limb alone was not sufficient to improve performance. b, Participant 3 performed the SOT without stimulation (light magenta) and with stimulation (dark magenta). Both Participant 2 and Participant 3 exhibited improved performance on conditions with platform sway and eyes closed (+5.12 Participant 2, +9.60 Participant 3) and with visual surround sway (+4.04 Participant 2, +13.39 Participant 3). Both participants, however, exhibited decreased performance with stimulation during static standing with eyes closed (−6.25 Participant 2, −4.32 Participant 3). Additionally, Participant 3 had worse performance on static standing with eyes open with stimulation (−4.13). Change in median values reported. * represents a MDC, ** represents a clinically meaningful difference (>8.0).
