Extended Data Fig. 3: mRNA quantification of transgenes in HEKhNORM2 and HEKhNORM3 by qPCR.

From: Nitroglycerin-responsive gene switch for the on-demand production of therapeutic proteins

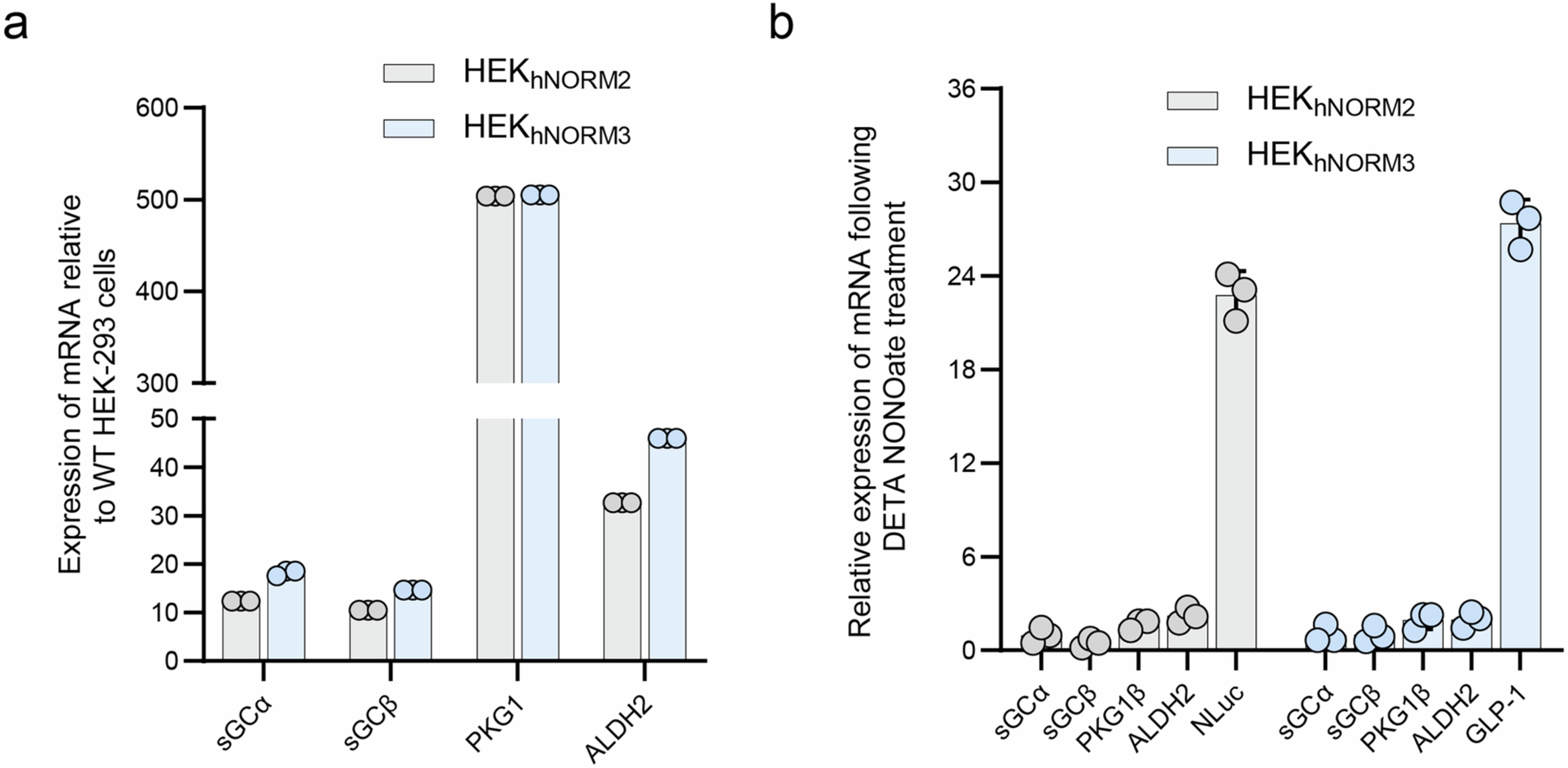

Extended Data Fig. 3: mRNA quantification of transgenes in HEKhNORM2 and HEKhNORM3 by qPCR.The alt text for this image may have been generated using AI.

(a) mRNA levels of sGCα, sGCβ, PKG1, and ALDH2 relative to those in WT non-engineered HEK-293 cells. (b) mRNA levels of sGCα, sGCβ, PKG1, ALDH2, NLuc, and GLP-1 following DETA NONOate (100 µM) treatment for 24 h. Values are shown relative to corresponding untreated cells. Data are presented as means ± s.d., n = 3. Source data are provided as a Source Data file.

Source data
