NH3 formation from N2 and H2 mediated by molecular tri-iron complexes

Nature Chemistry volume 12, pages 740–746 (2020)Cite this article

Subjects

Abstract

Living systems carry out the reduction of N2 to ammonia (NH3) through a series of protonation and electron transfer steps under ambient conditions using the enzyme nitrogenase. In the chemical industry, the Haber–Bosch process hydrogenates N2 but requires high temperatures and pressures. Both processes rely on iron-based catalysts, but molecular iron complexes that promote the formation of NH3 on addition of H2 to N2 have remained difficult to devise. Here, we isolate the tri(iron)bis(nitrido) complex [(Cp′Fe)3(μ3-N)2] (in which Cp′ = η5-1,2,4-(Me3C)3C5H2), which is prepared by reduction of [Cp′Fe(μ-I)]2 under an N2 atmosphere and comprises three iron centres bridged by two μ3-nitrido ligands. In solution, this complex reacts with H2 at ambient temperature (22 °C) and low pressure (1 or 4 bar) to form NH3. In the solid state, it is converted into the tri(iron)bis(imido) species, [(Cp′Fe)3(μ3-NH)2], by addition of H2 (10 bar) through an unusual solid–gas, single-crystal-to-single-crystal transformation. In solution, [(Cp′Fe)3(μ3-NH)2] further reacts with H2 or H+ to form NH3.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

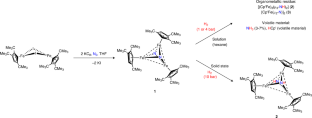

Fig. 1: Synthesis and reactivity of compound 1 towards H2 in solution and in the solid state, producing compounds 2, 3 and NH3.

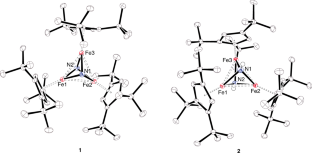

Fig. 2: Molecular structures of compound 1 and compound 2.

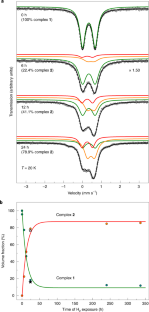

Fig. 3: Conversion of complex 1 into complex 2 upon different H2 exposure times followed by Mössbauer spectroscopy.

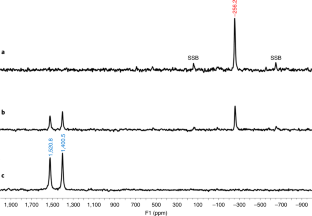

Fig. 4: Complete conversion of 15N-labelled 1 into 2 as monitored by 15N Hahn-echo MAS NMR spectra.

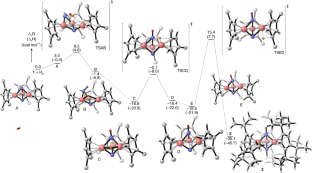

Fig. 5: Computed enthalpy profile at room temperature for the reaction of complex 1 with H2 to yield compound 2.
