Extended Data Fig. 3: Structural model of U2506, U2585, and the N-terminus of ribosomal protein bL27.

From: Atomistic simulations of the Escherichia coli ribosome provide selection criteria for translationally active substrates

Extended Data Fig. 3

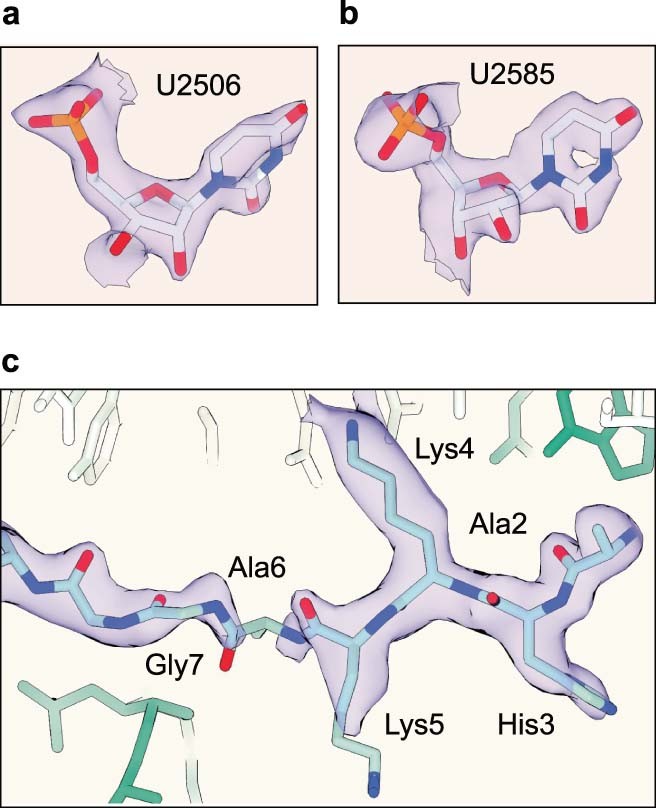

a, b, bases U2506 and U2585 of the 23S rRNA modelled in the cryo-EM density. The map here has been post-processed with a B-factor of −13 Å2 and supersampled for smoothness. c, Newly modelled section of r-protein bL27 (Ala-2 to Gly-7) (light blue). 23S rRNA is shown in white and A-site tRNA in green, with EM density shown in indigo. The map here has been post-processed with a B-factor of 10 Å2.
