Extended Data Fig. 1: Fo-Fc omit maps for ligand molecules in A₃(De)₃_(ADP·Pi)_1cat(ADP)_{2cat,2non-cat}.

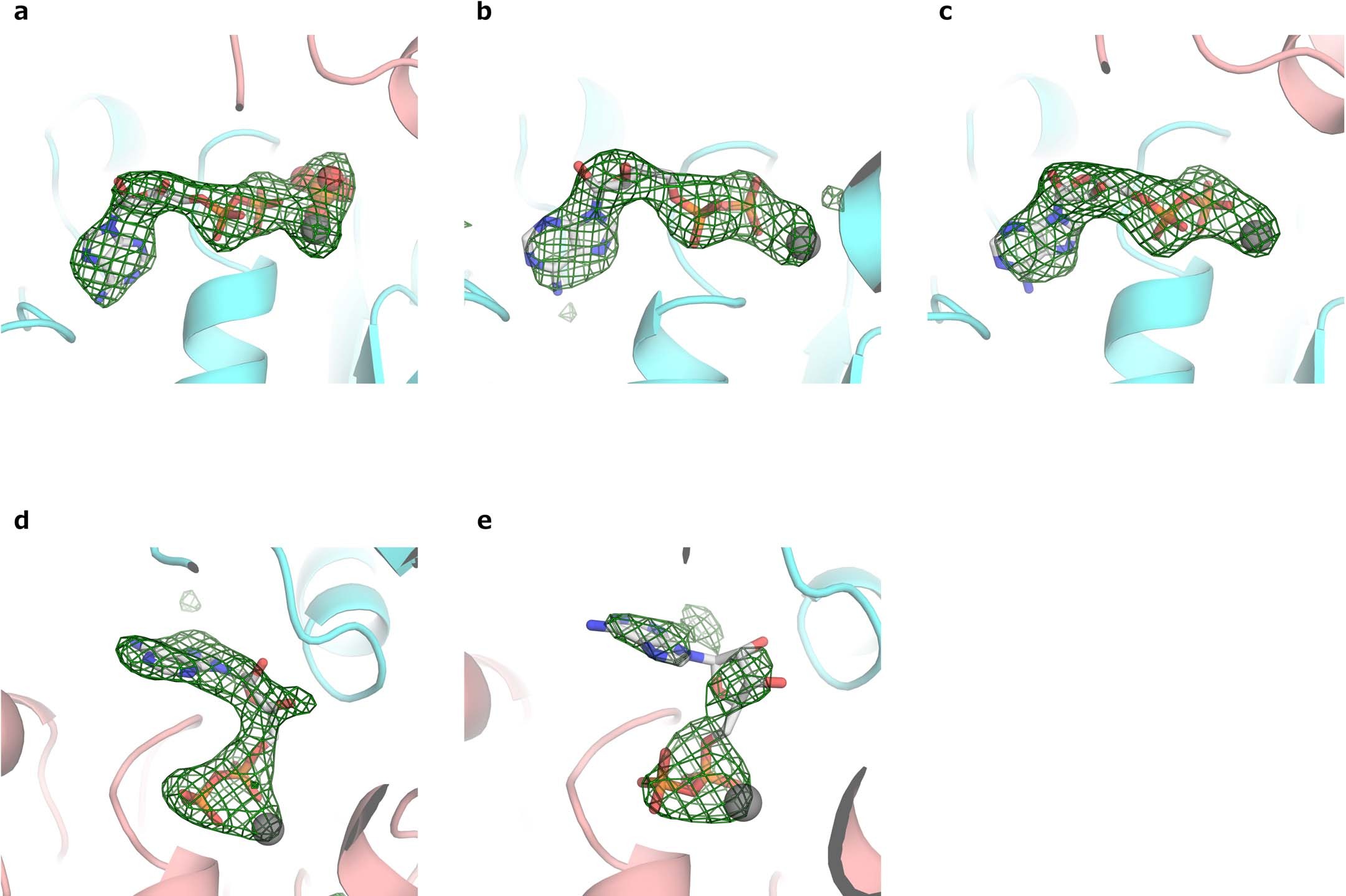

At the chain A (a), B (b), C (c), D (d), and E (e) in A₃(De)₃_(ADP·Pi)_1cat(ADP)_{2cat,2non-cat}, the F_o-F_c omit map at 3.0σ for ligand molecules are shown in green mesh. The A- and B-subunit are colored by cyan and pink, respectively.
