Extended Data Fig. 6: Estimation of the N₂⁺ vibrational populations.

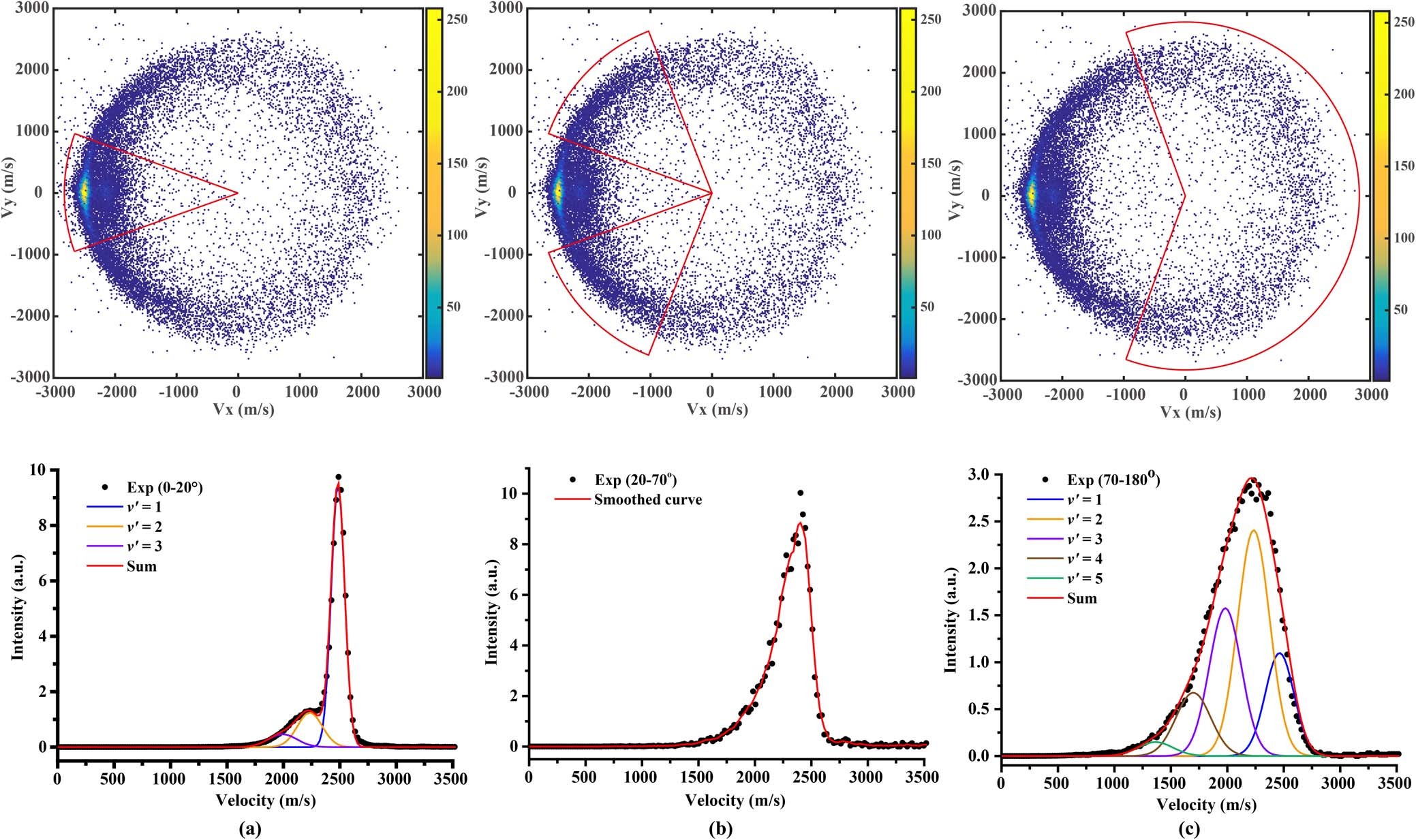

The top panel shows the angular ranges and the bottom panel shows the corresponding Gaussian fittings to the integrated speed distributions: (a) 0-20°; (b) 20-70°; (c) 70-180° for the COM collision energy of 1.588 eV.
