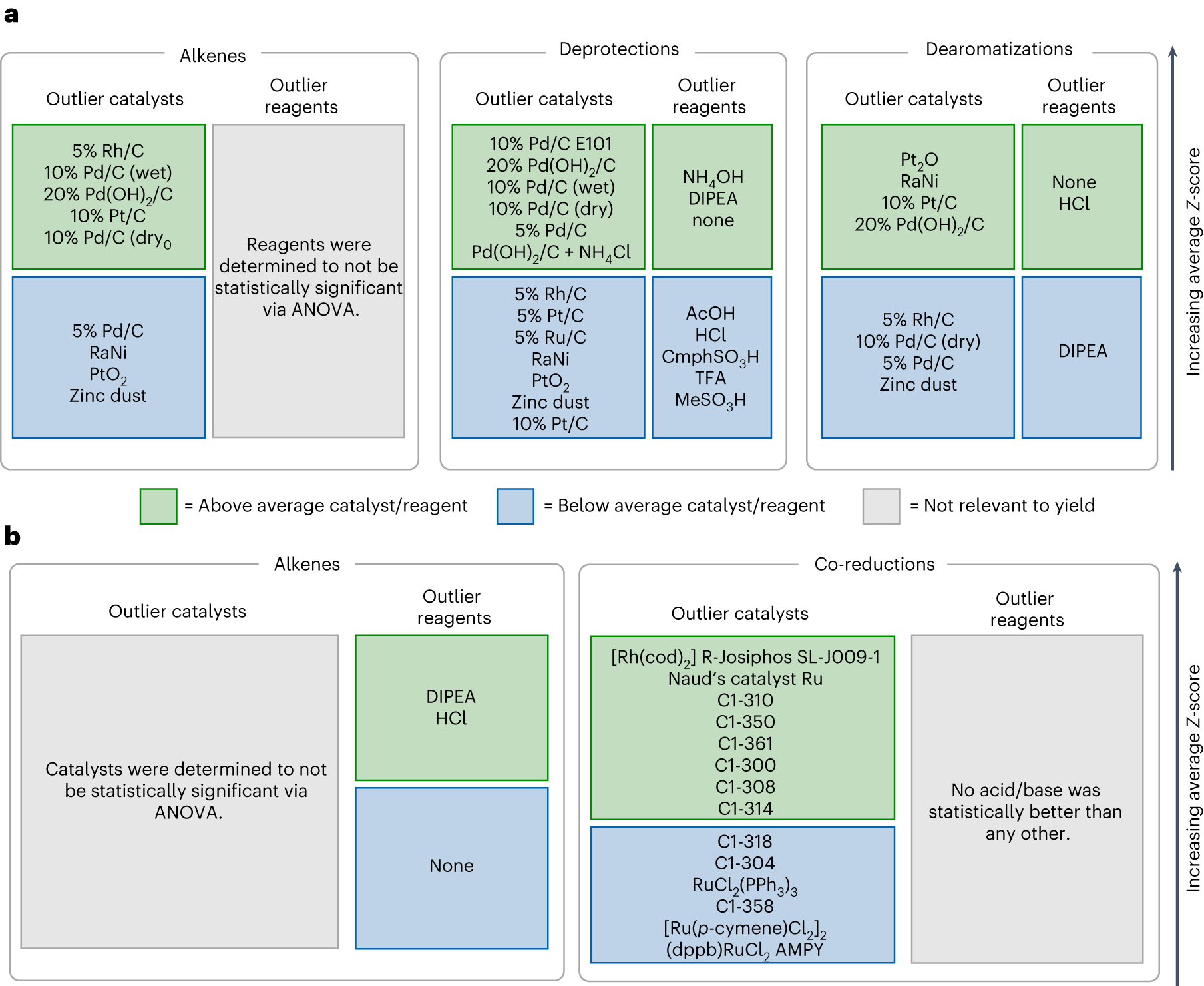

Fig. 6: HiTEA best-/worst-in-class analysis of hydrogenation dataset.
From: Probing the chemical ‘reactome’ with high-throughput experimentation data
Acronym structures can be found in Supplementary Fig. 11. a, Heterogeneous hydrogenation dataset is shown. b, Homogeneous hydrogenation dataset is shown.
