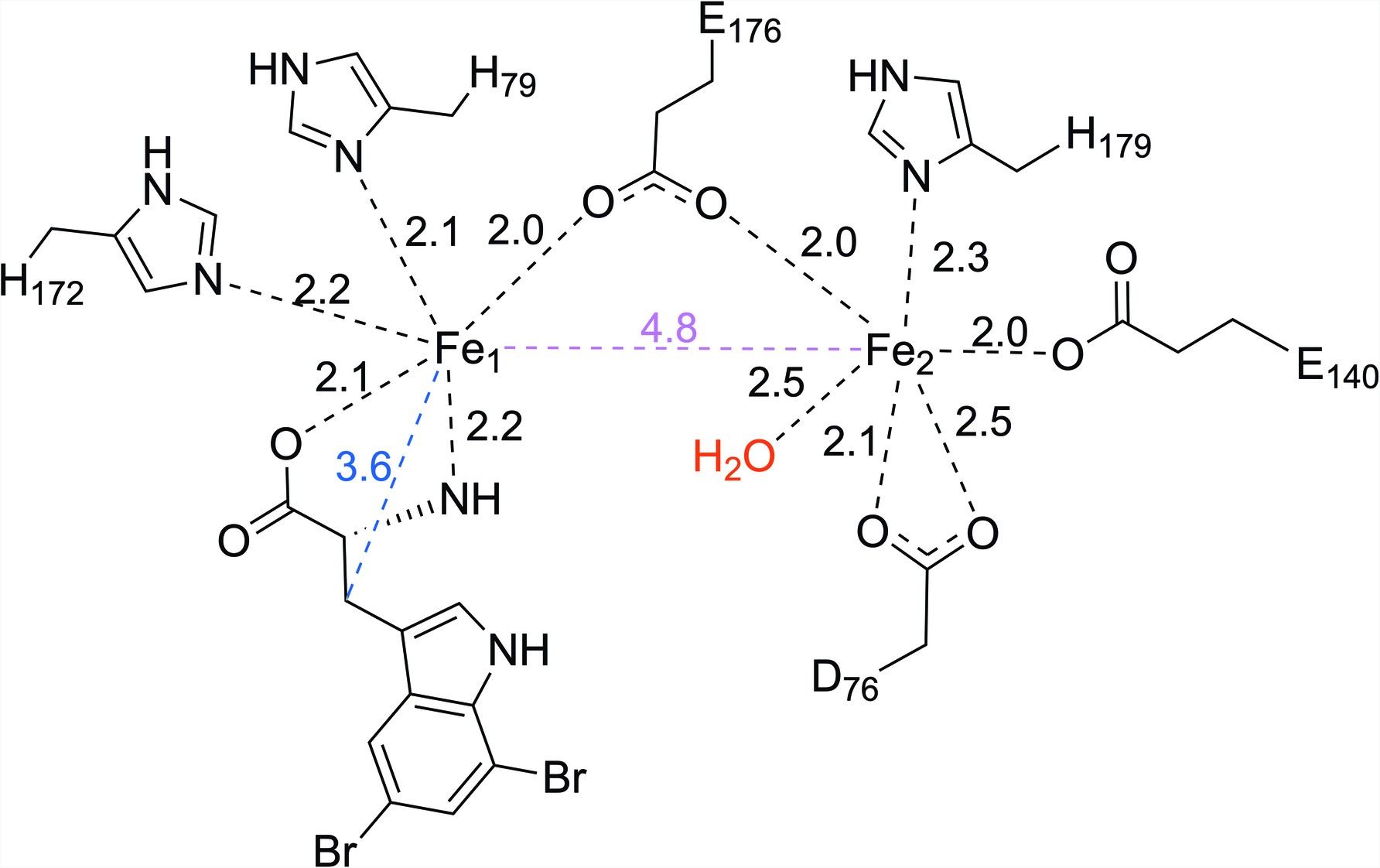

Extended Data Fig. 3: Schematic representation of the first coordination sphere of the diiron active site of Fe2(II/II)-AetD.
From: A single diiron enzyme catalyses the oxidative rearrangement of tryptophan to indole nitrile
Fe-ligand distances are in black dashes, Fe-Fe distance is in purple dash, and Fe-substrate (β-carbon) distance is shown in blue dash. All distances are in angstroms (Å).
