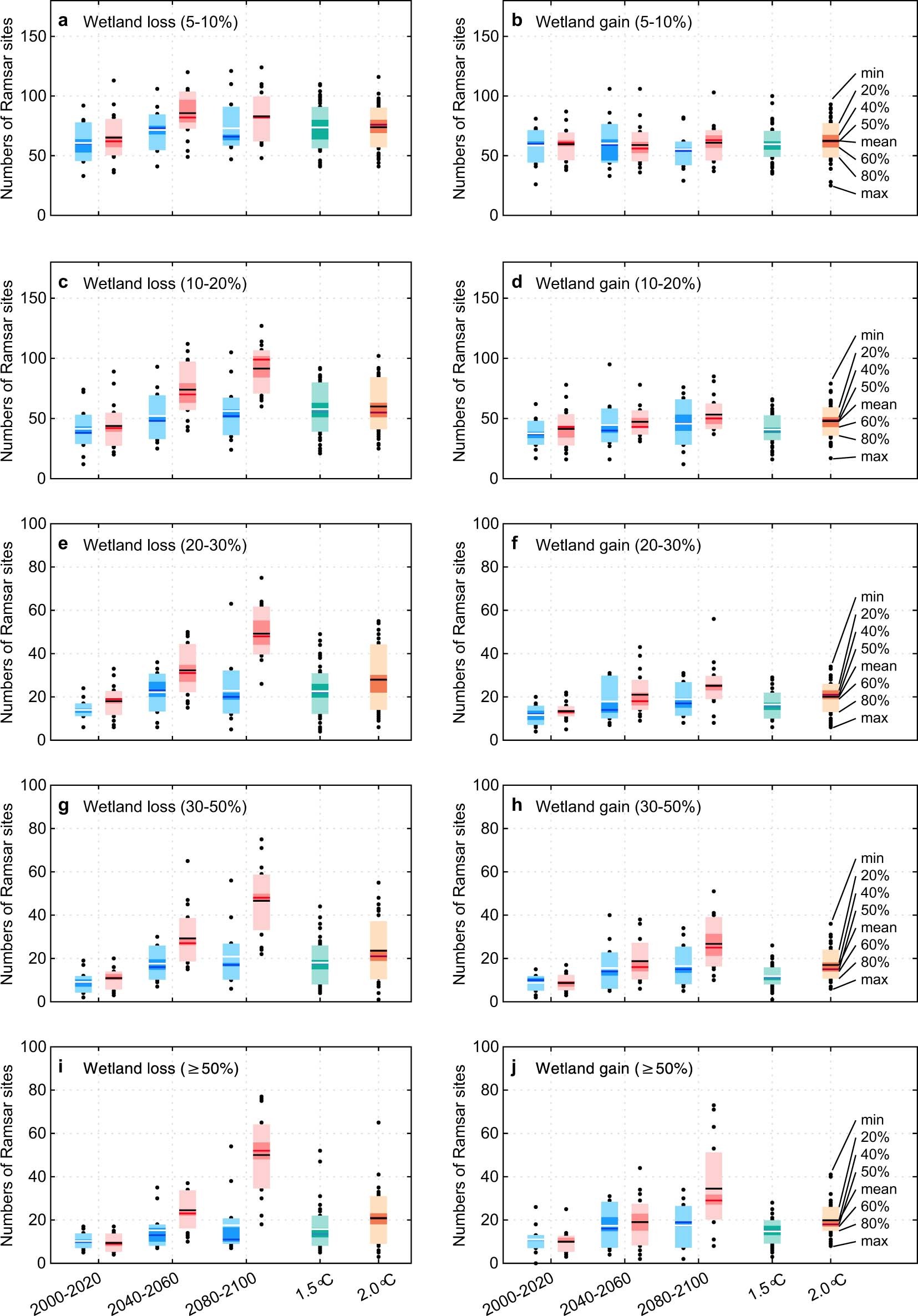

Extended Data Fig. 4: Same as Fig. 2, but for temporal changes in numbers of global inland Ramsar sites with wetland loss/gain of five different cutoffs.
From: Future impacts of climate change on inland Ramsar wetlands
a, c, e, g, and i show temporal changes in numbers of sites with wetland loss of 5–10%, 10–20%, 20–30%, 30–50%, and over 50% respectively through the 21st century under RCP2.6 and RCP8.5, while b, d, f, h, and j are for numbers of sites with wetland gain of 5–10%, 10–20%, 20–30%, 30–50%, and over 50% respectively.
