Extended Data Fig. 4: Anomaly patterns of strong and moderate pIOD in some selected models.
From: Opposite response of strong and moderate positive Indian Ocean Dipole to global warming

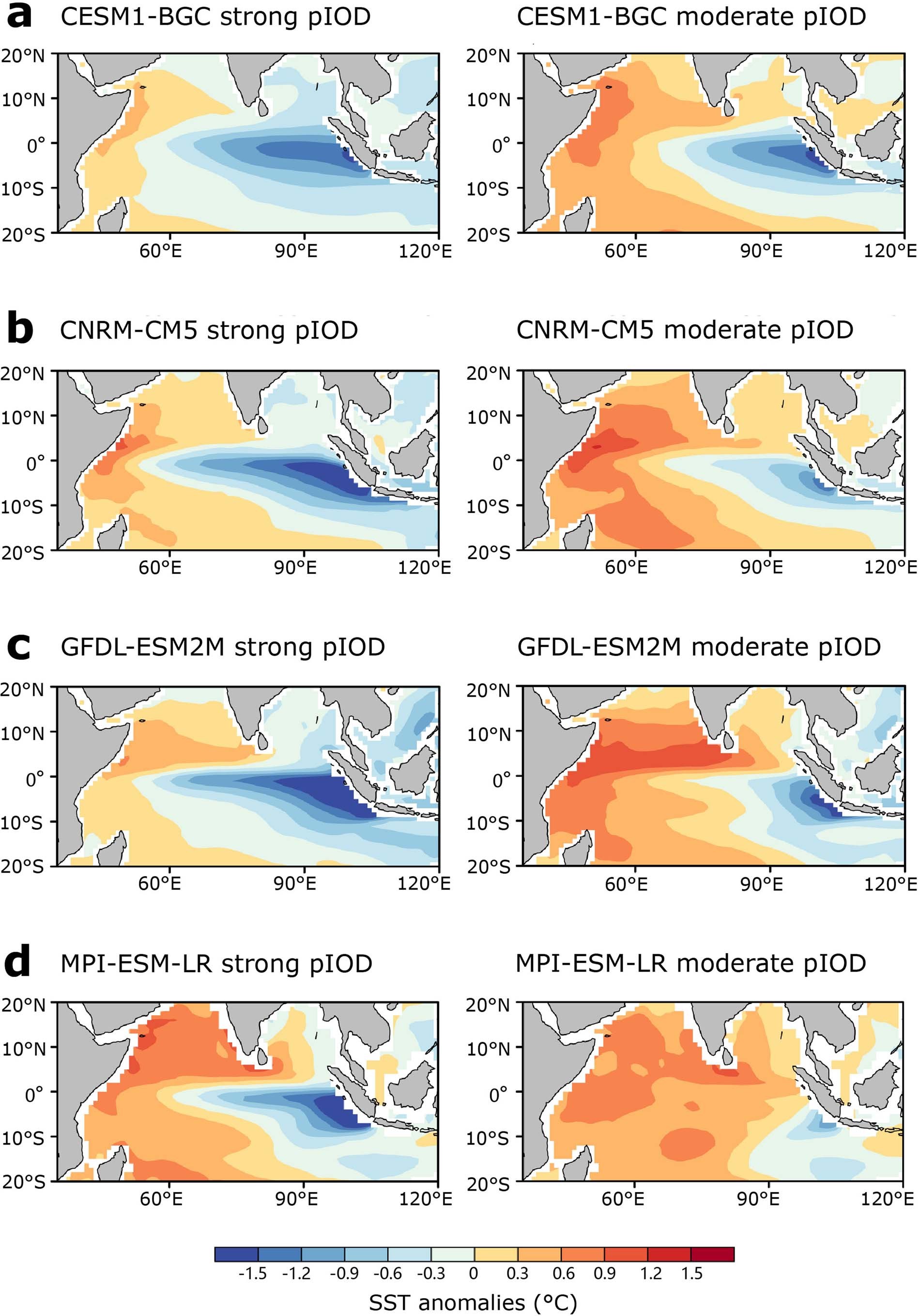

A composite of SON SST anomalies (°C) for strong pIOD with an S-index>1.5 s.d. and moderate pIOD with an M-index>1.25 s.d. in a CESM1-BGC, b CNRM-CM5, c GFDL-ESM2M, d MPI-ESM-LR. Left panels show strong pIOD and right panels show moderate pIOD. These show that anomaly patterns can be rather different from one model to another.
