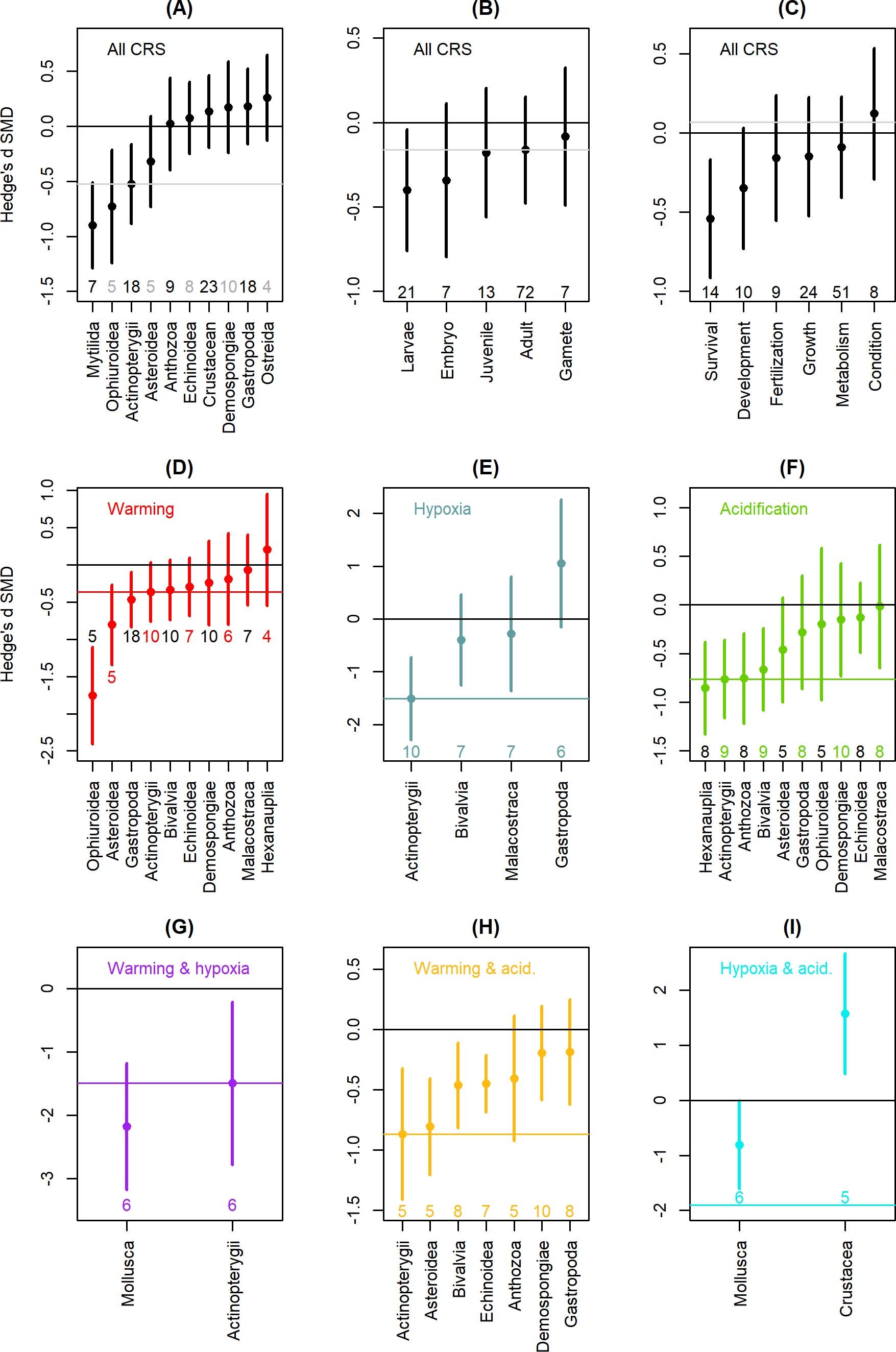

Extended Data Fig. 2: Response severities (partial effect size, mean and 95% CIs) averaged over all CRS treatments by clades (A), life history stage (B) and response type (C), by clades to single stressors (D-F), and to stressor combinations (G-I). | Nature Climate Change

Extended Data Fig. 2: Response severities (partial effect size, mean and 95% CIs) averaged over all CRS treatments by clades (A), life history stage (B) and response type (C), by clades to single stressors (D-F), and to stressor combinations (G-I).

From: Marine clade sensitivities to climate change conform across timescales

Extended Data Fig. 2

Horizontal coloured lines show model intercepts. Groups along the x-axis are ordered by rank severity. Other taxa were included in the models but are not displayed because these did not reach sufficient sample sizes for reliable inference (species n ≥ 4). Actual numbers of species coloured above the x-axis. In (a–c), stressor treatment was also included as an undisplayed covariate.
