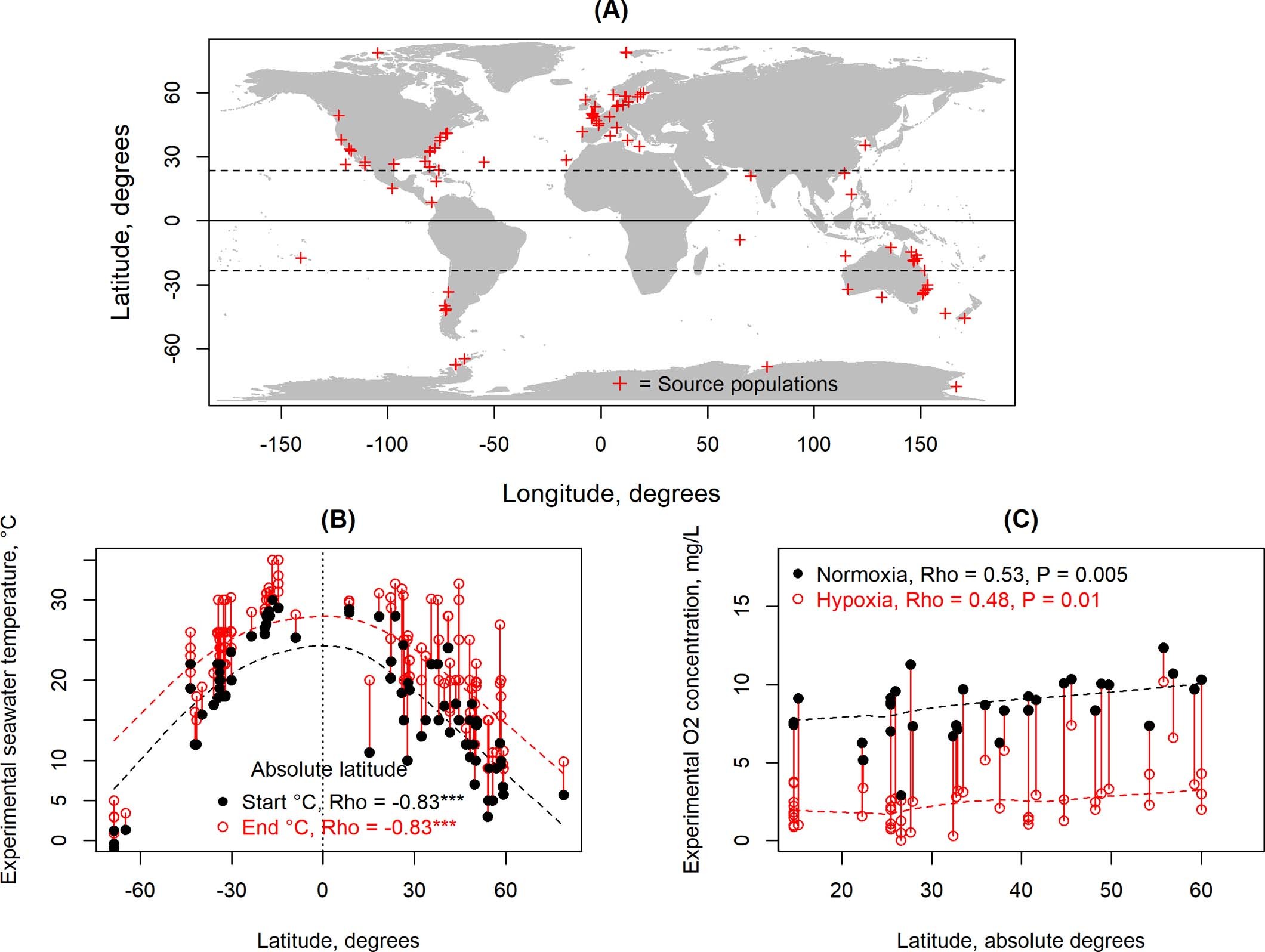

Extended Data Fig. 3: Coverage of (A) living organism source populations involved in CRS response experiments (or, where coordinates were lacking, species distribution centroids), and natural latitudinal trends in (B) temperature and (C) oxygen concentrations.
From: Marine clade sensitivities to climate change conform across timescales
Experimental start (control) conditions are shown as black filled points linked to end or treatment conditions (red open points) with lines. Dashed lines show LOESS trends. Duplicates removed for correlation tests. *** P < 0.0001. Cold tropical temperatures represent deep-water habitat for diel migratory species. Control salinity ~ absolute latitude, Rho = −0.34, P = 0.007. Ocean pH was unrelated to latitude.
