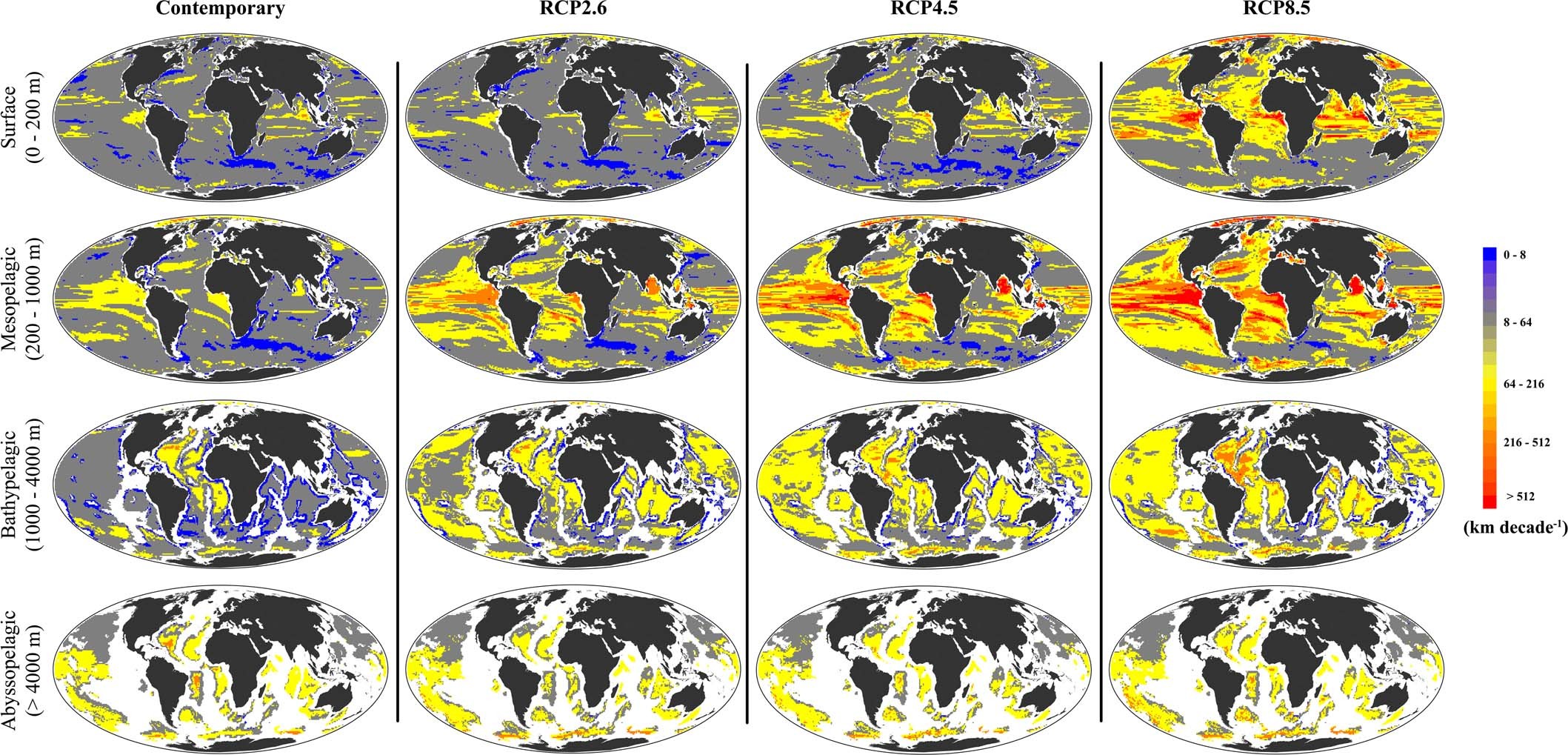

Extended Data Fig. 7: Interquartile range of climate velocity among models.
From: Climate velocity reveals increasing exposure of deep-ocean biodiversity to future warming
Interquartile range (75th–25th) of climate velocity among models (n = 11) for contemporary (1955–2005) and projected future sea temperatures (2050–2100) at five different depths in the ocean and under three IPCC scenarios (RCP2.6, RCP4.5 and RCP8.5). White grid squares in deeper layers represent areas where seafloor features extending upward toward the surface mean that there are no sea temperature data available at this depth.
