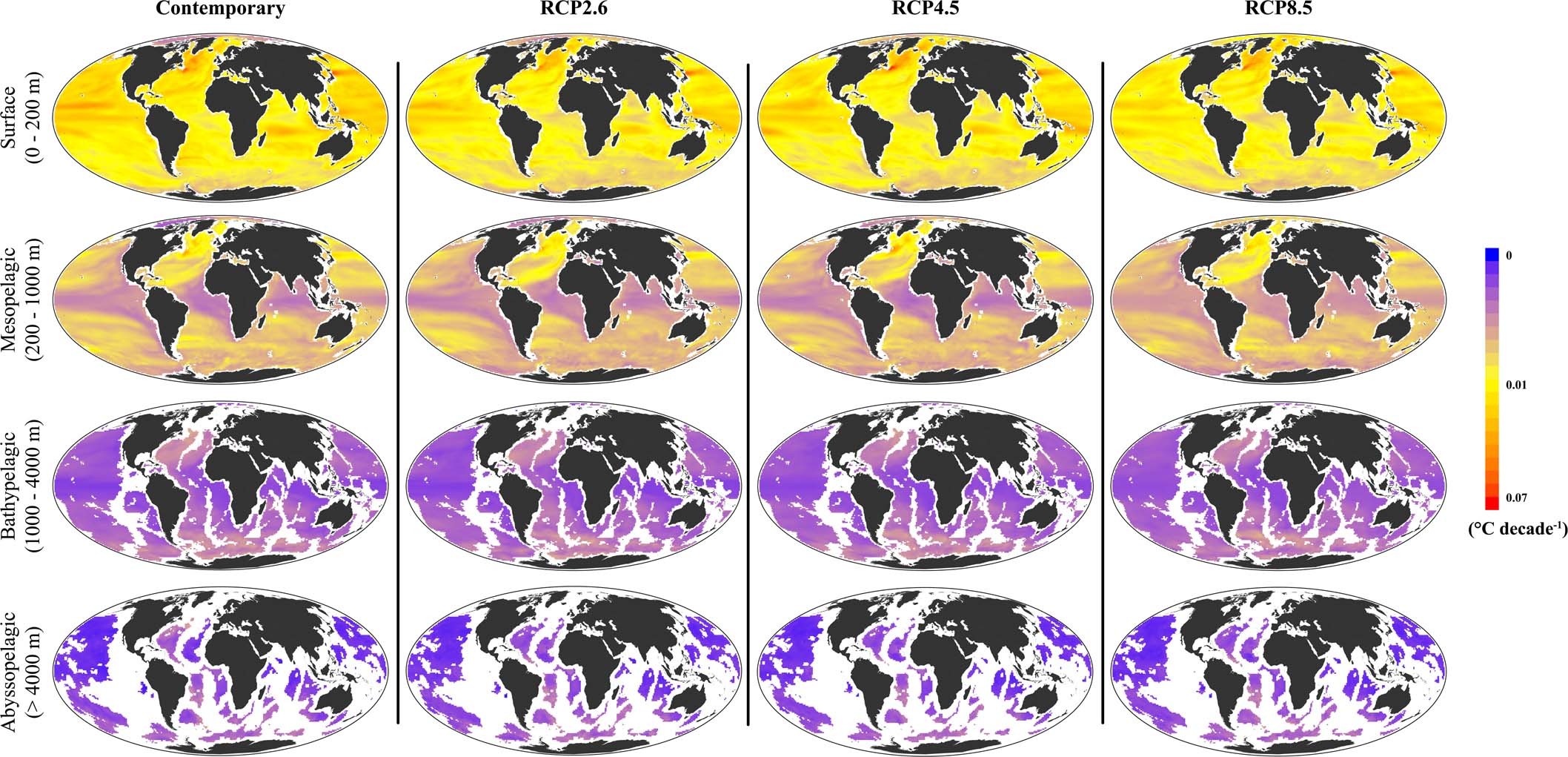

Extended Data Fig. 6: Standard errors associated to the linear temporal trend component of climate velocity.
From: Climate velocity reveals increasing exposure of deep-ocean biodiversity to future warming
Standard errors (°C decade−1) associated to the linear temporal trend component of climate velocity for contemporary (1955–2005) and projected future sea temperatures (2050–2100) at four different depths in the ocean under three IPCC scenarios (RCP2.6, RCP4.5 and RCP8.5). White grid squares in deeper layers represent areas where seafloor features extending upward toward the surface mean that there are no sea temperature data available at this depth.
