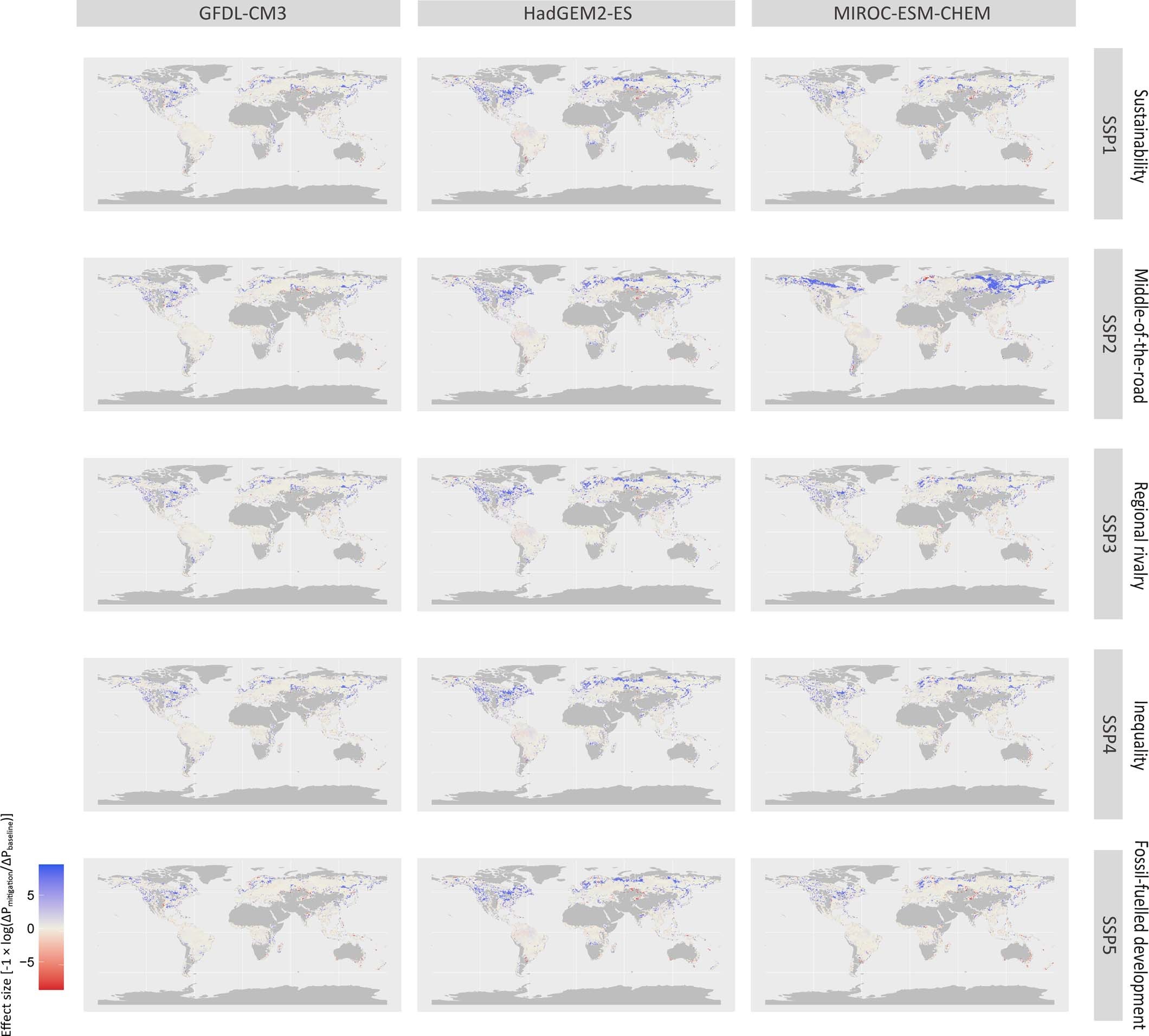

Extended Data Fig. 5: Maps showing the effects of a climate change mitigation to alleviate the loss of tree diversity-dependent productivity (ΔP) from 2005 to 2070s.
From: Biodiversity–productivity relationships are key to nature-based climate solutions
The effect sizes [inverse of log(mitigation/baseline)] of ΔP were estimated at the local scale (at the 30 arcsec; the total number of fine grids ~ 115 million for each scenario). Positive and negative values of effect size indicate more and less effectiveness of mitigation policy, respectively. In these maps, means of the effect sizes within each of the coarse grids (n = 32,670 coarse grids) are shown. Results are shown for the five Shared Socioeconomic Pathways (SSPs) and the three Global Climate Models (GCMs). Files to produce these maps are provided as Supplementary Data 4.
