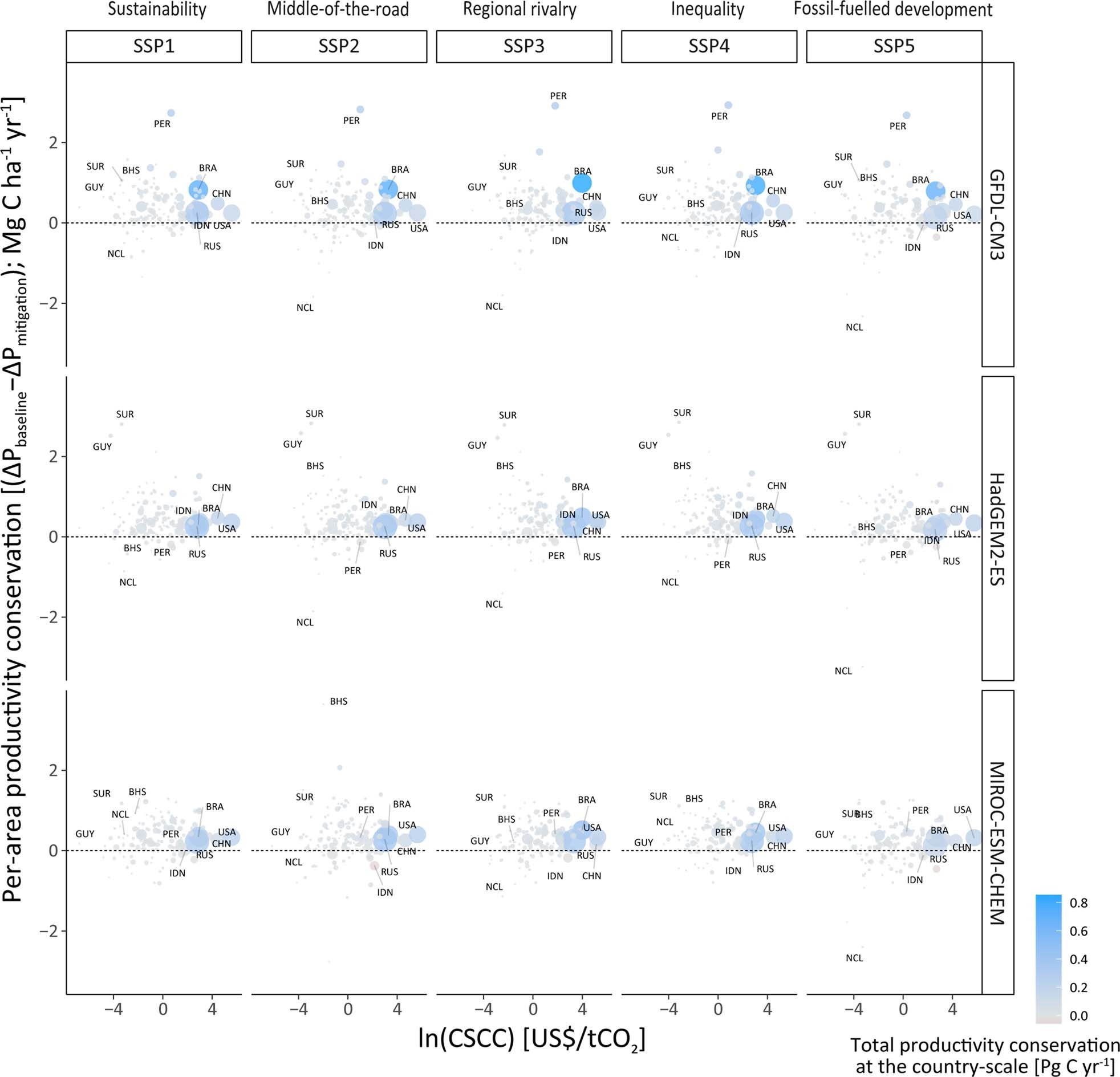

Extended Data Fig. 9: The relationships between the country-level social cost of carbon (CSCC33) and the country-level per-area conservation of tree diversity-dependent productivity.
From: Biodiversity–productivity relationships are key to nature-based climate solutions
The size of circles is proportional to the forested area of each country. The colors of circles correspond to the country-level sum of productivity conservation shown in Extended Data Figure 8 (see the color scale at the bottom right). Results are shown for the five Shared Socioeconomic Pathways (SSPs) and the three Global Climate Models (GCMs). Names of major and outlier countries are shown beside the symbols; ISO 3166-1 alpha-3 code is used to indicate countries.
