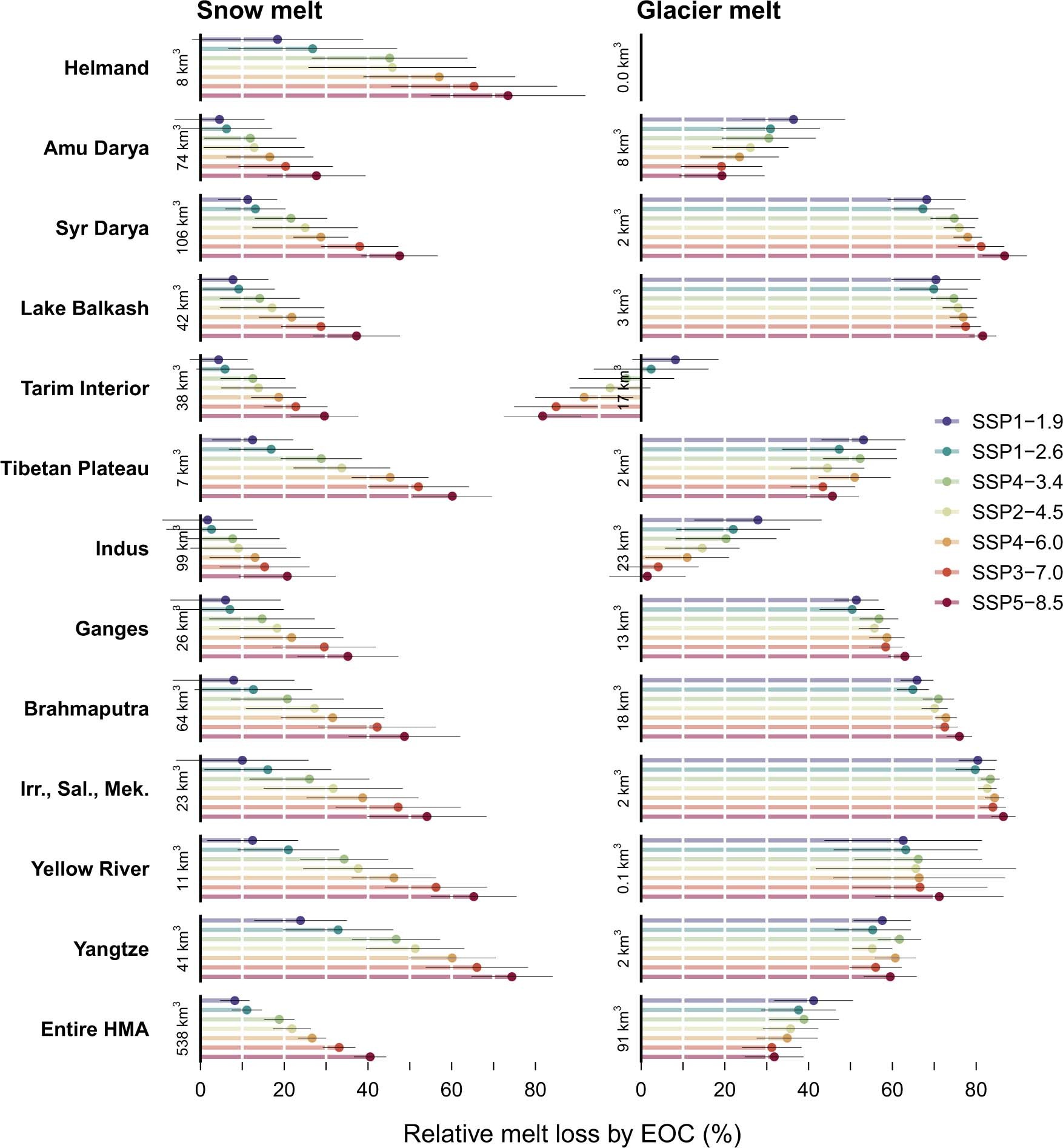

Extended Data Fig. 4: Projected losses in snow and glacier meltwater by the EOC.
From: Climate change decisive for Asia’s snow meltwater supply
Simulated loss of annual snow (left column) and glacier (right column) meltwater by the end of century (2071–2100) for the SSP-RCP ensembles (Supplementary Table 1) with respect to present day (2000–2019) for all basins and the entire HMA (rows). Annual meltwater volume (km3) in the reference period is annotated in black left of the vertical bars. The errors bars indicate one standard deviation.
